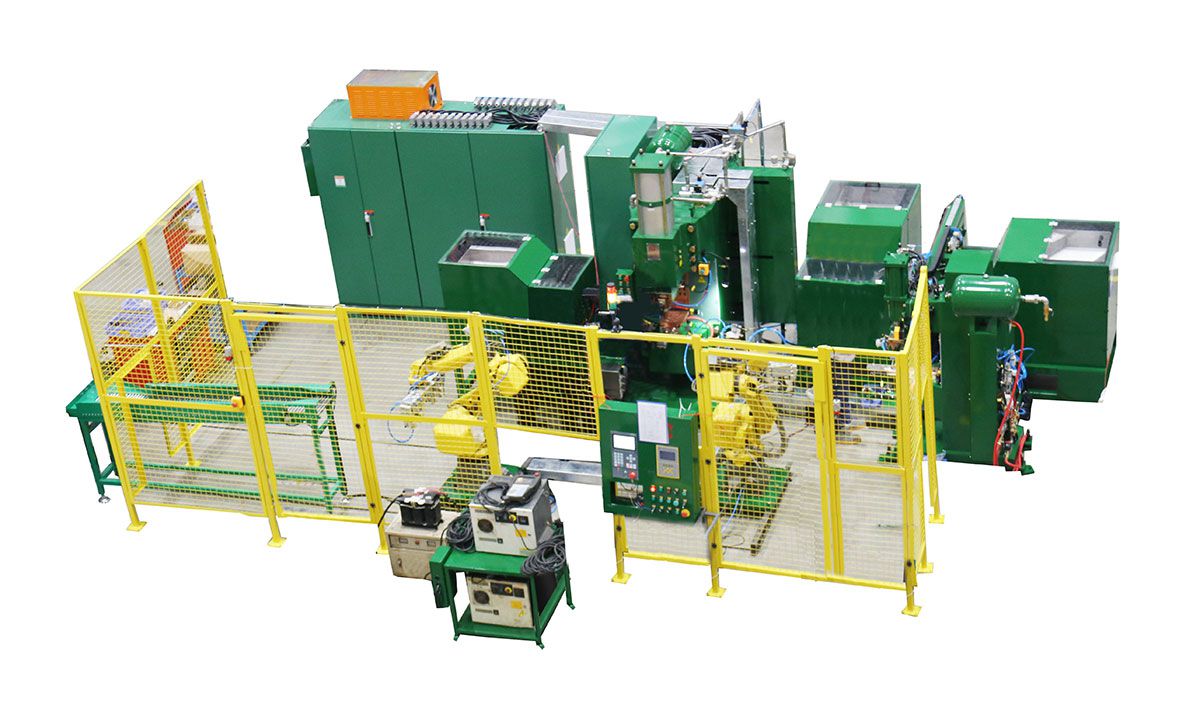

Automatic Production Line for Air Conditioning Compressor Shell

  1. Home
  2. Cases
  3. Automatic Production Line for Air Conditioning Compressor Shell

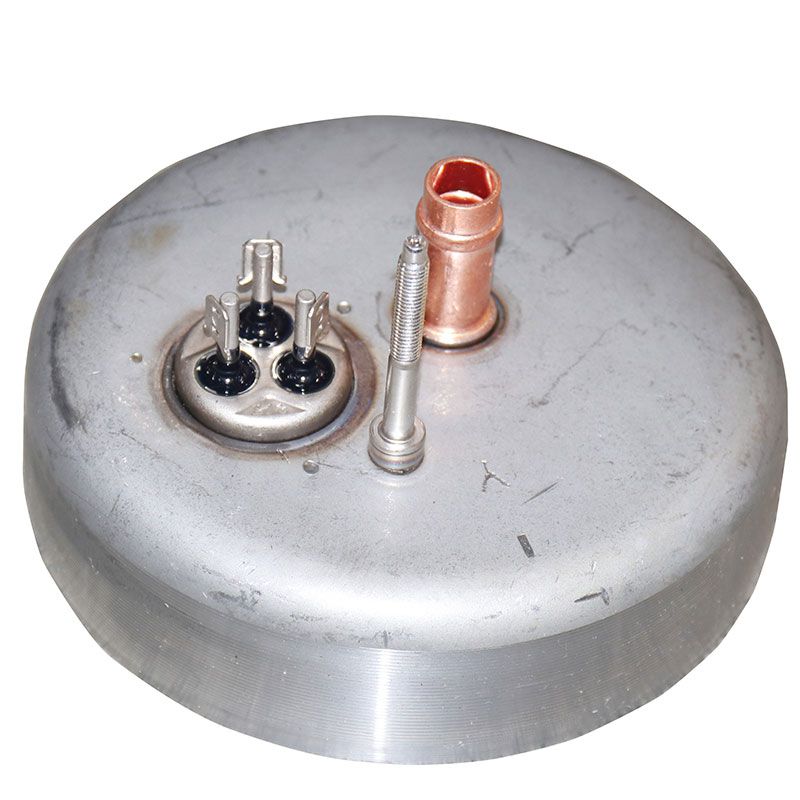

Air conditioner compressor upper shell cover welding automatic production line

Automatic Production Line for Air Conditioning Compressor Shell
Automatic Production Line for Air Conditioning Compressor Shell
Inquiry
Basic Parameters
Model # ZA0-F19025
Rated capacity KVA 220/440/660
Power supply V/Φ/Hz 380/3/50
Max. primary current A 140/200/250
Max. Short Circuit Current KA 40/61/85
Max. working pressure kN 9.4/26/26
Dimensions (LxWxH) mm 5788x3658x2524

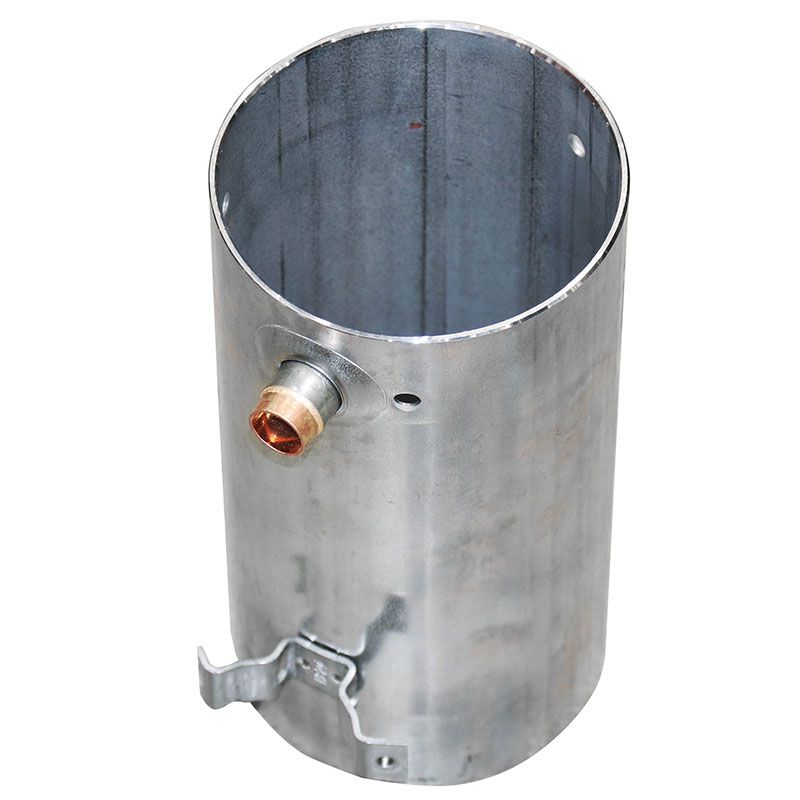

Air conditioner compressor main casing welding line

Automatic Production Line for Air Conditioning Compressor Shell
Automatic Production Line for Air Conditioning Compressor Shell
Inquiry
Basic Parameters
Model # ZA0-F19007
Rated capacity KVA 165KVA+35KJ
Power supply V/Φ/Hz 380/3/50
Max. primary current A 100/150
Max. Short Circuit Current KA 30/222
Max. working pressure kN 10/24.5
Dimensions (LxWxH) mm 8589x3550x2922
Our Advantages
56000m 2+ facility
300+ well-experienced employees. Our facility is equipped with advanced equipment for developing, manufacturing and testing.
30+ years of experience
Dedicated in metal joining techniques, have offered services for 20+ international customers.
ISO9001 Certifications
ERP, PDM, CRM, OA, TP100 and ISO9001 2015 managements.
International sales and service network
Agent network in Europe, North America, Southeast Asia, etc., offering international services.
