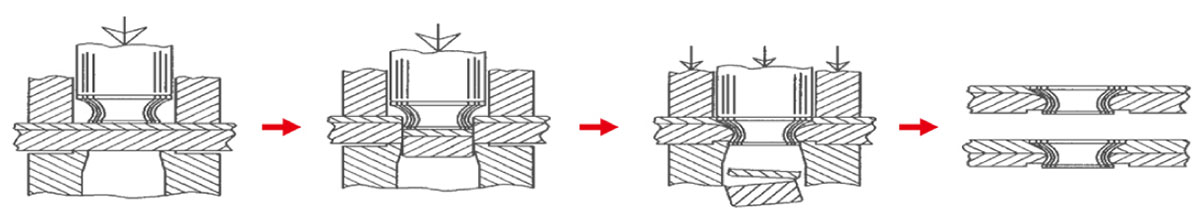

During the flush self-pierce riveting (FSPR) process, the riveting machine automatically feeds rivets into riveting head. By pressing, material got sheared and sent-out by rivet, which is then pressed and formed by tooling underneath to join two parts together.

Flush Self-Pierce Riveting Process
Flush Self-Pierce Riveting Process

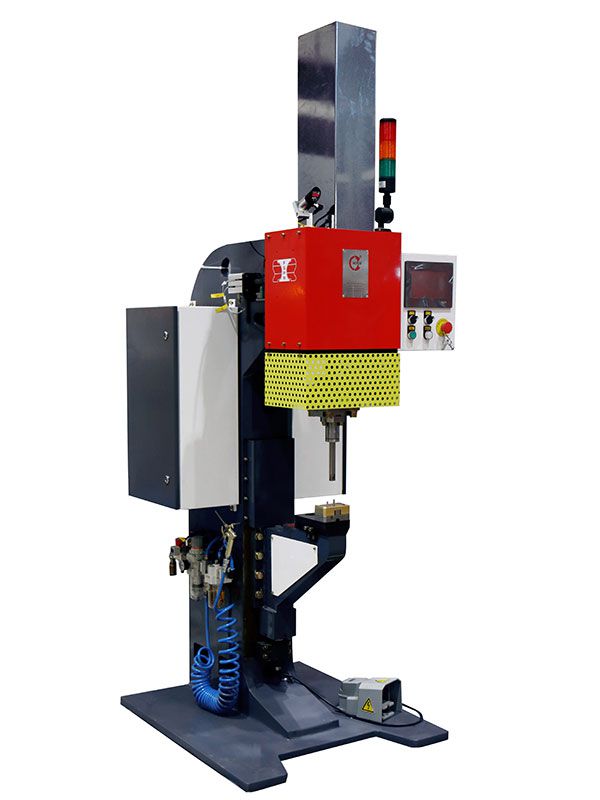

Stationary Self-piercing Riveting Machine, ZMY-008-001-18002
Stationary Self-piercing Riveting Machine, ZMY-008-001-18002

The stationary self-piercing riveting machine applies floor-standing structure with good body rigidity; pressing process is performed by pneumatic-hydraulic power cylinder.

Specifications
Model ZMY-008-001-18002
Power supply V/Φ/Hz 220/1/50
Max. air pressure Mpa 0.6
Press force kN 74
Total stroke mm 100
Power stroke mm 12
Dimensions (LxWxH) mm 800x960x2400

Features
  • High operation speed & press force output
    Compressed air is applied to power the pressing process. With an air/oil pressure conversion mechanism, high operation speed and high press force output can be achieved; press force output can be adjusted conveniently as well; a better performance is thus granted compared with traditional hydraulic pressing devices.
  • Convenient adjustment and maintenance
    The pressing force output is adjustable in both normal-pressure process and pressure-boosted process, which can be achieved by simply adjusting input air pressure; the device is thus more convenient for maintenance, and lower cost is therefore granted.
  • Automatic and safe
    The stationary self-piercing riveting machine equips full-auto control system, in which manual mode is also offered with emergency stop and up/down inching switch functions; real-time running status can be acquired conveniently, which grants better efficient and safety; time consumption of shutdown maintenance is therefore reduced, thus granting lower labor cost and better safety.

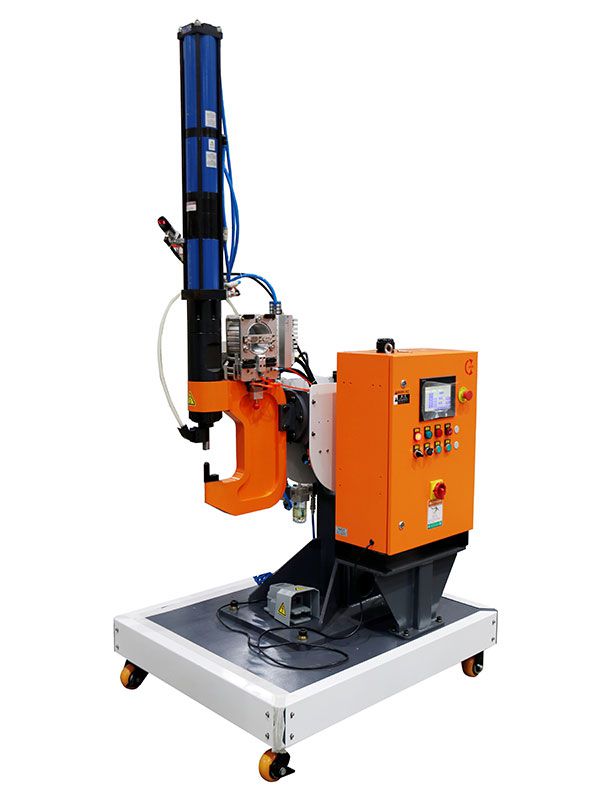

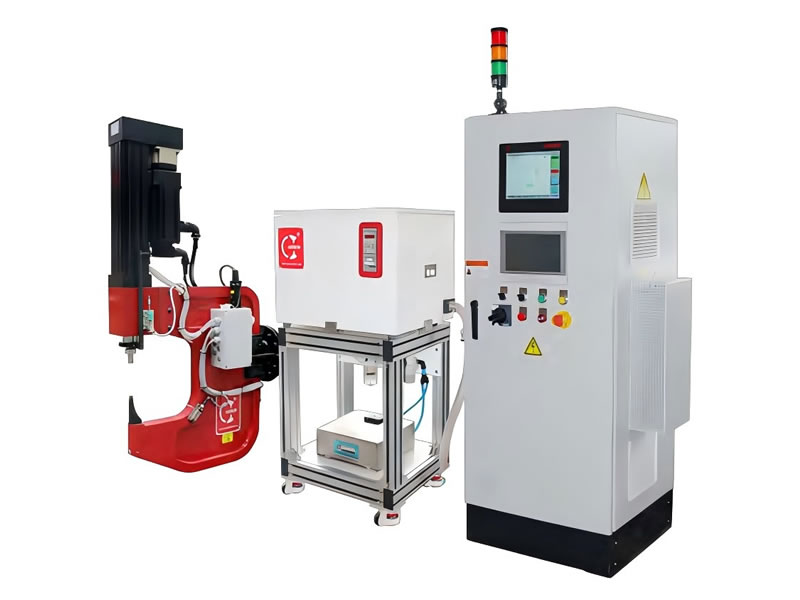

Riveting Plier for Industrial Robot, F04-000734
Riveting Plier for Industrial Robot, F04-000734

The attachable flush self-pierce riveting machine is highly integrated, equipped with test and control functions. Automatic control is achieved by a simple connection between the riveting machine and robot or workstation.

Communication protocols between riveting plier and PLC or robot is customizable, options include profinet, cc-link, etc.

Specifications
Model F04-000734
Power supply V/Φ/Hz 220/1/50
Max. air pressure Mpa 0.5
Press force kN 80
Total stroke mm 100
Power stroke mm 10
Dimensions (LxWxH) mm 1000x1000x2400

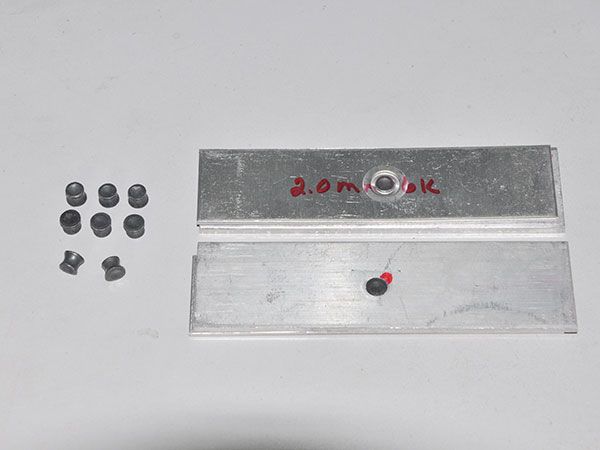

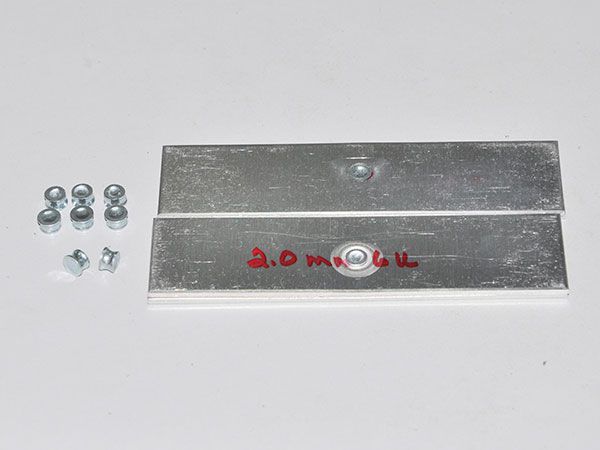

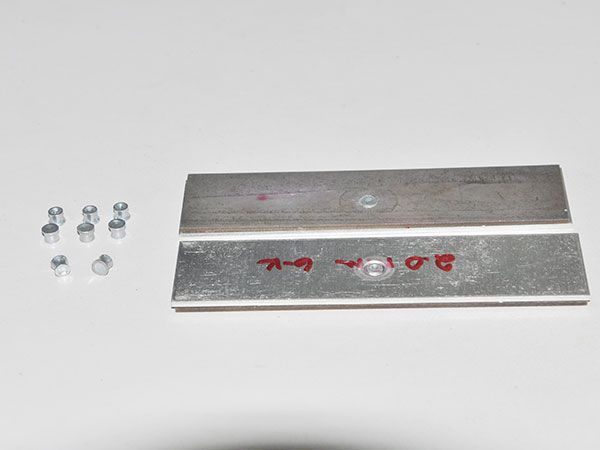

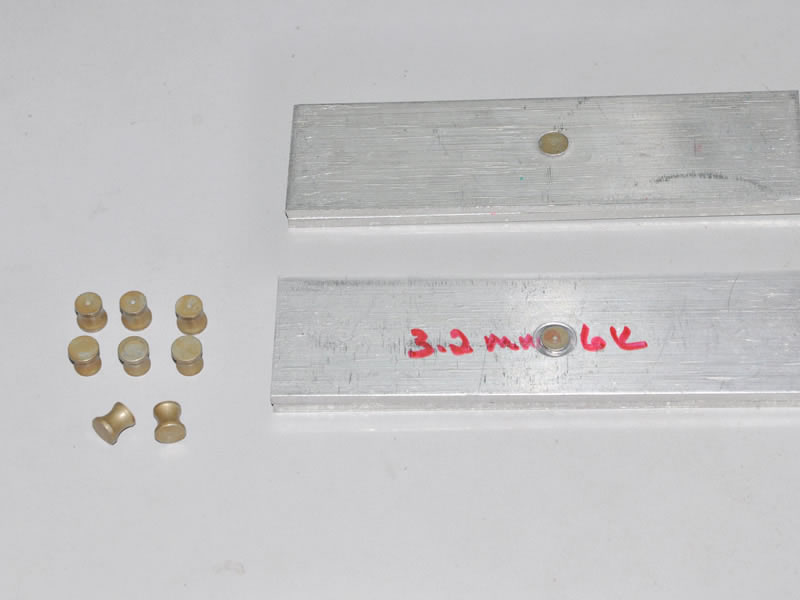

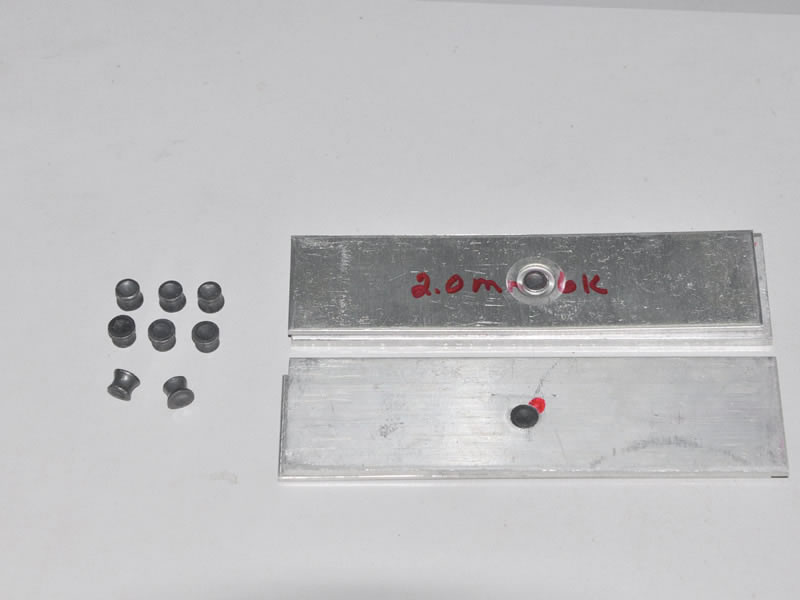

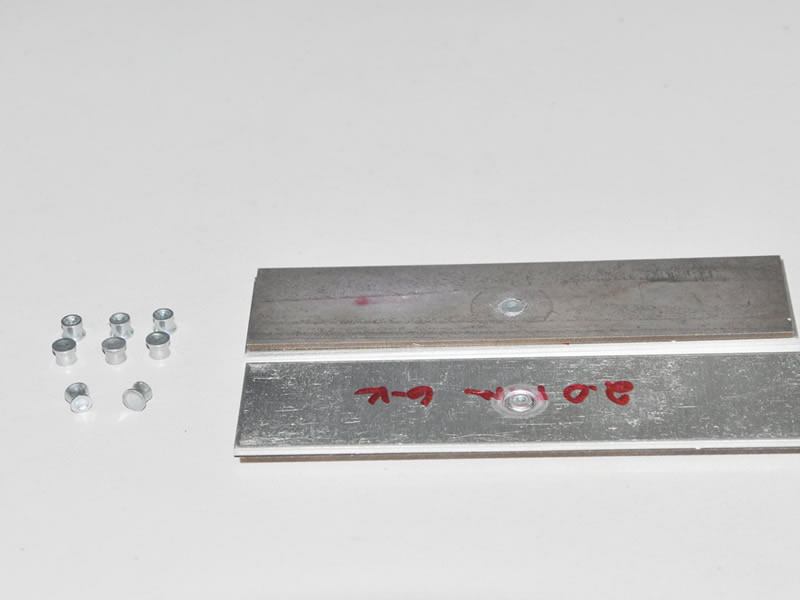

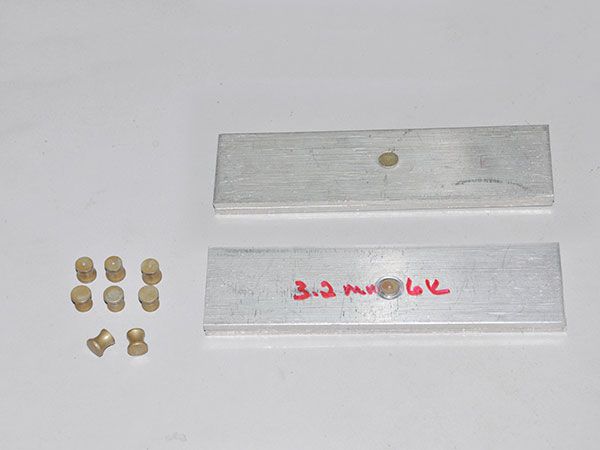

Self-pierce Rivet
  • Self-pierce Rivet
  • Self-pierce Rivet
  • Self-pierce Rivet
  • Self-pierce Rivet
