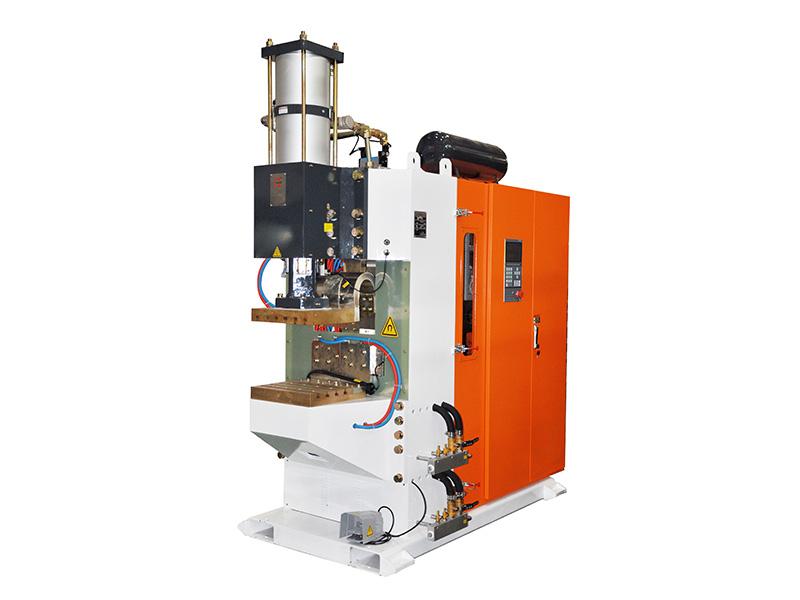

| Item | Height | Length | Width |
| Size | 2454 | 2474 | 1724 |
| Item | Parameter |
| Rated Capacity (KVA) | 1250 |
| Power Supply (V/φ/HZ) | 380/ 3P /50HZ |
| Primary Current (A) | 800 |
| Rated Duty Cycle (%) | 20 |
| Secondary empty voltage (V) | 12.5 |
| Throat Depth (mm) | 205 |
| Electrode Arm Gap (mm ) | 380 |
| Cylinder Stroke (mm) | 150 |
| Welding Speed (s/pc) | 10s/pc/mm2 |
| Max Wording Pressure (N/0.5MPa) | 48000 |
| Compressed Air Pressure (MPa) | 0.6-0.7 |
| Compressed Air Consumption (0.4MPa, Stroke 30 mm) (L/ welding spot) | 14.43 |
| Cooling Water Consumption (L/MIN) | 70 |
| Max. Short Circuit Current (A) | 150000 |
Feature
1. A 1025KVA medium frequency DC power supply is equipped by the welding machine.
2. The maximum short circuit current is 200KA.
Background information

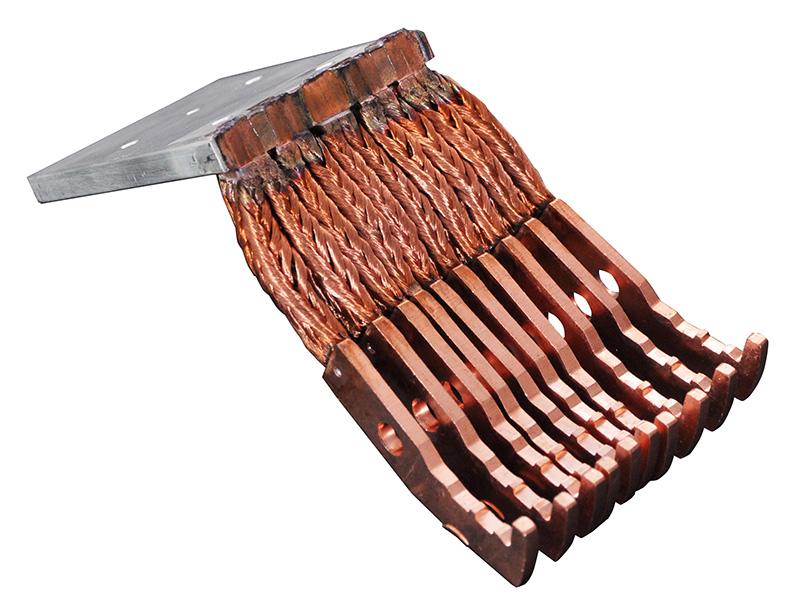

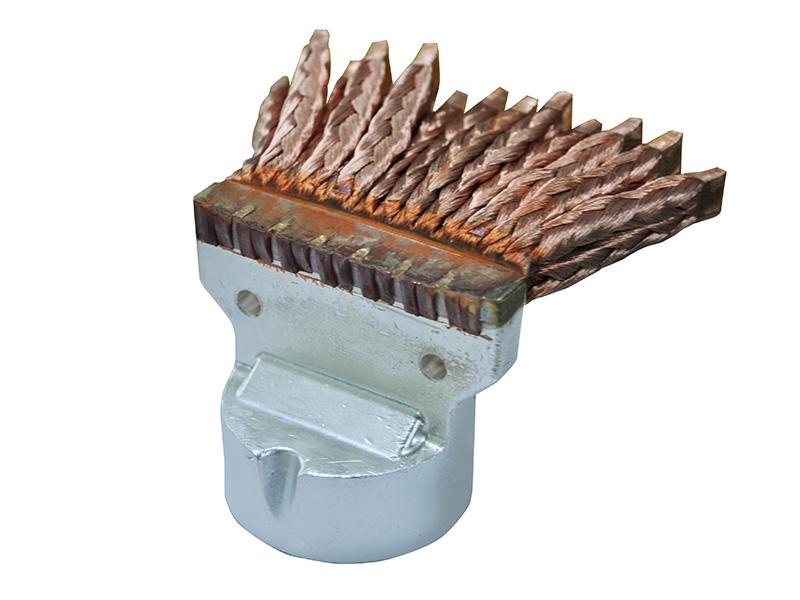

The equipment features a frame-type circuit breaker electrical busbar welding system without brazing material and utilizes a 1250KVA medium frequency DC power supply. The welding technology works using an electrical resistance process that creates a high temperature diffusion process. Soft braided wire and fixed copper block can be welded together quickly and accurately. The technology is widely used in the production of frame-type circuit breakers in the busbar industry.

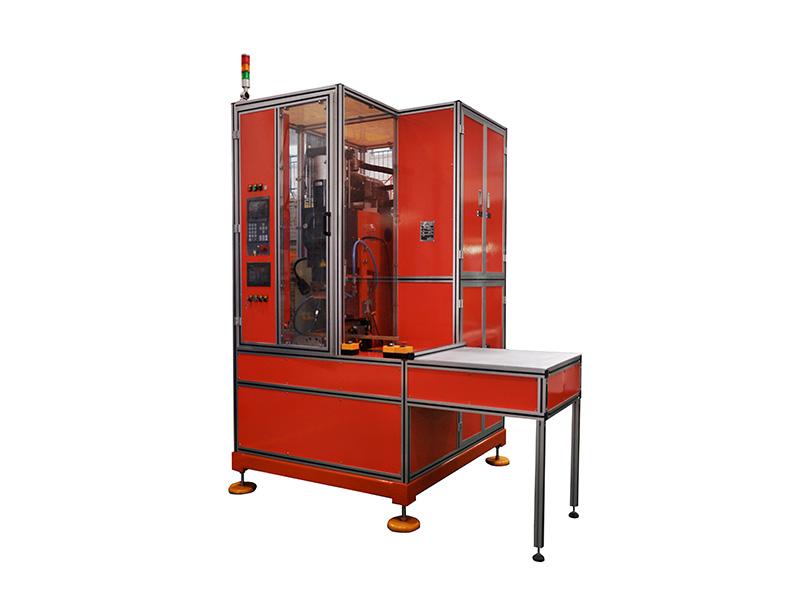

| Item | Height | Length | Width |
| Size | 2842 | 1255 | 1882 |
| Item | Parameter |
| Rated capacity (KVA) | 880(220*4) |
| Power supply (V/φ/HZ) | 380/ 3 /50 |
| Primary current (A) | 700 |
| Rated duty cycle (%) | 20 |
| Secondary empty voltage (V) | 10.4 |
| Throat depth (mm) | 300 |
| Cathode welding cylinder diameter/ strokemm | Φ200*80(single axis and not adjustable ) |
| Electrode Dimensions (mm) | Up: Φ44*60, head-milling: 31*12 Down: 40*12.5,40*20 |
| Workpiece Dimensions (mm) | Copper wire: 10*9*4,14.3*13.1*4.3 Busbar: 46*10(3 groove), 80*10(5groove), 88.5*12(4 groove) |
| Welding capacity number of copper wire/time | 4 |
| Welding speed (m/min) (s/piece)(time/s) | 30 |
| Working pressure of top electrode(kgf/0.5MPa) | 1500 |
| Working pressure of bottom electrode (kgf/14MPa) | 7000 |
| Compressed air pressure (MPa) | 0.6~0.7 |
| Compressed air consumption (o.4MPa air pressure) (L/ welding spot) | 5.84 |
| Cooling water consumption (L/MIN) | 24 |
| Servo motor power of work fixture (KW) | 0.4 |
| Primary cable specification (MM2) | 3*90+2*6 |
| Max. Short Circuit Current (A) | 110000 |
Feature
1. The welding system is equipped with a Heron 880KVA medium frequency DC power supply.
2. Automatic clamping system and moving system for optimal efficiency.
Background information

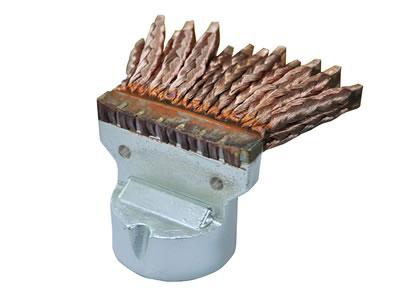

The welding system is specially designed for circuit breakers and comes equipped with a 880KVA medium frequency DC power supply. The welding system can process two pieces of brazing filler metal at once.
