| Item | Height | Length | Width |
| Size | 2250 | 1350 | 1950 |
| Item | Parameter |
| Rated capacity (KVA) | 2*55 |
| Power supply (V/φ/HZ) | 380/ 3 /50HZ |
| Primary current (A) | 63 |
| Rated duty cycle (%) | 20 |
| Secondary empty voltage (V) | 8.9 |
| Throat depth (mm) | 100 |
| Arm gap (mm) | 35 |
| Cylinder stroke (mm) | 75 |
| Electrode Dimensions (mm) | Custom |
| Welding speed (s/piece) | 10 |
| Max. working pressure (kgf) | 62.8 |
| Compressed air pressure (MPa) | 0.6~0.7 |
| Compressed air consumption (0.5MPa air pressure, stroke: 60mm)( L/piece) | 1.43 |
| Cooling water consumption (L/MIN) | 12 |
| Primary cable specification (MM2) | 3*16+2*6 |
| Max. Short Circuit Current of transformer (KA) | 18 |

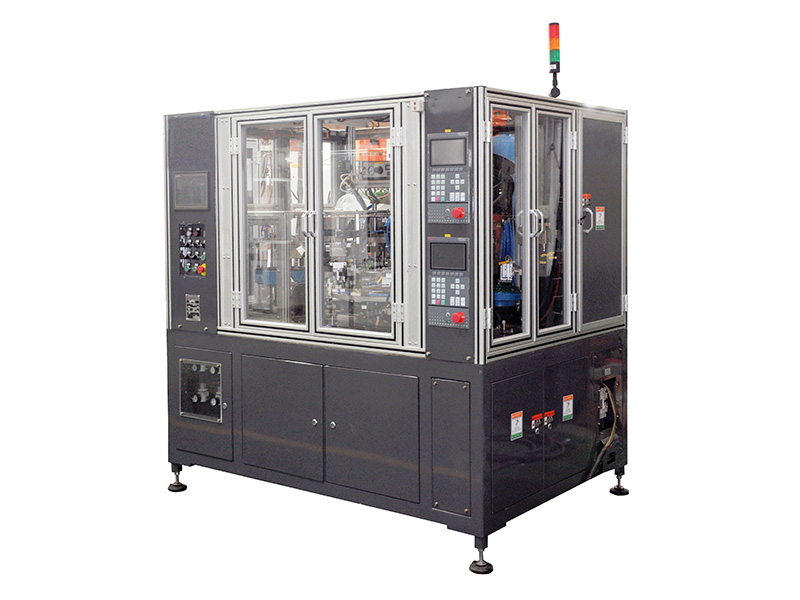

Feature
1. The electrical contact brazing system features a Heron medium frequency DC power supply unit.
2. The welding system is equipped with a workpiece automatic feeding and testing unit.
3. The welding machine features with a brazing paste automatic feeding system.

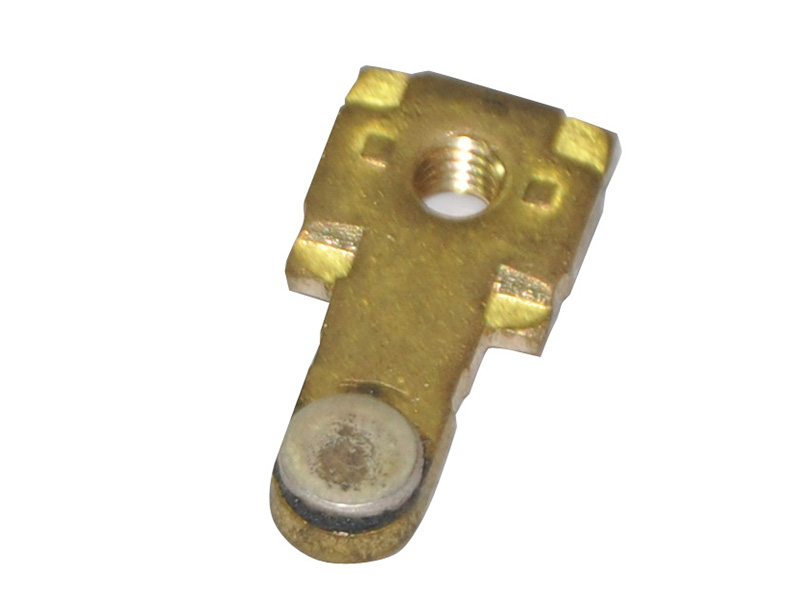

Background information
The equipment is designed for the moving contact automatic welding process. Traditional methods are typically done manually and need to be done away from streamlined production lines. Our welding system is designed with a multi-station automatic indexing unit, automatic feeding, and automated welding function allowing it to be fixed onto fully automatic production lines.
| Item | Height | Length | Width |
| Size | 2250 | 1350 | 1850 |
| Item | Parameter |
| Rated capacity (KVA) | 55 |
| Power supply (V/φ/HZ) | 380/ 3 /50HZ |
| Primary current (A) | 63 |
| Rated duty cycle (%) | 20 |
| Secondary empty voltage (V) | 8.9 |
| Throat depth (mm) | 100 |
| Arm gap (mm) | 95 |
| Cylinder stroke (mm) | 75 |
| Welding speed (s/piece) | 4.5 |
| Max. working pressure (kgf) | 62.8 |
| Compressed air pressure (MPa) | 0.6~0.7 |
| Compressed air consumption (0.5MPa air pressure, stroke: 60mm) (L/piece) | 1.43 |
| Cooling water consumption (L/MIN) | 6 |
| Primary cable specification (MM2) | 3*16+2*6 |
| Max. Short Circuit Current of transformer (KA) | 18 |

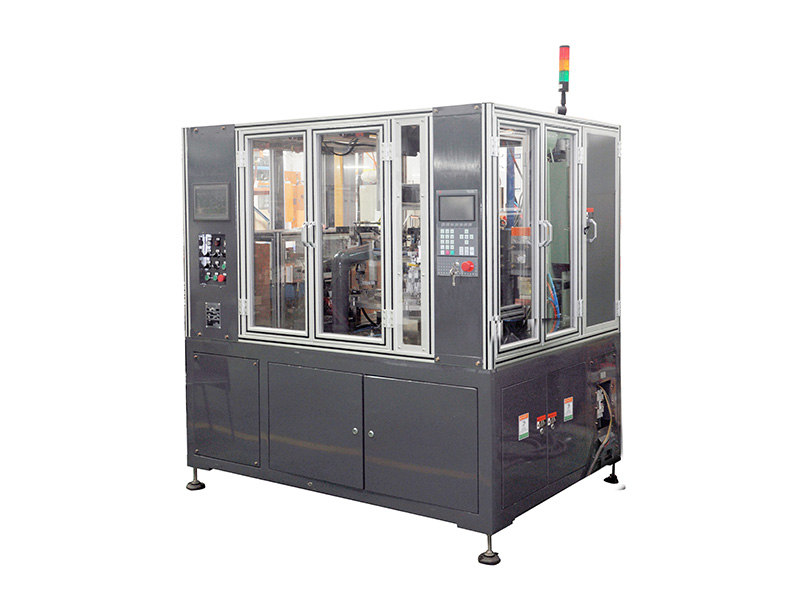

Feature
1. Stationary contact automated welding machines feature Heron medium frequency DC power supplies.
2. The welding system is equipped with a workpiece automatic feeding and testing function.
3. Outfitted with a brazing paste automatic feeding system.

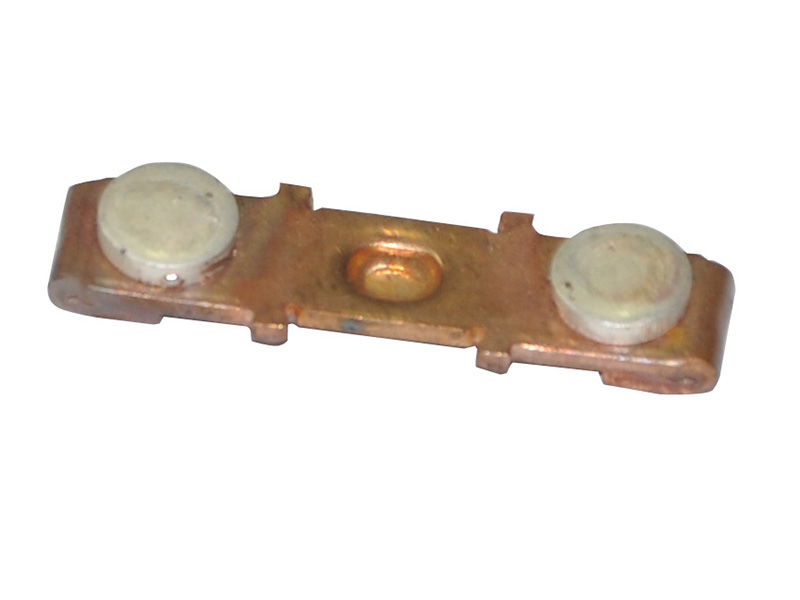

Background information of stationary contact automated welding machine
The equipment is designed for stationary contact automatic welding processes. Usually this is done manually. Our welding system allows for automatic indexing, feeding, and welding for fully-automatic production.
| Item | Height | Length | Width |
| Size | 1900 | 2573 | 1353 |
| Item | Parameter |
| Continuous rating (KW) | 100 ( MAX 160) |
| Power supply (V/φ/HZ) | 400~480/ 3 /50 ( 60 ) |
| Primary current (A) | 185 |
| Rated duty cycle/period (%/min) | 50/10 |
| Adjustable range of output power (%) | 2~100 |
| Output frequency (KHZ) | 10~25 |
| HHT1200 Power supply wire length (m) | 5 |
| displacement distance of tuner (mm) | 80 (adjustable) |
| Welding coil Dimensions (mm) | 15*15 (water hole: Φ10 ) |
| Workpiece Dimensions (mm) | Thickness of busbar: 24; silver-strip: 1.1 |
| welding capacity (mm) | 24+1.1 |
| Welding speed (m/min) (s/piece)(once/s) | 40s/piece (based on the Dimensions ofworkpiece ) |
| Silver-strip clamping cylinder diameter (mm) | Φ25 (Proportional valve pressure regulating) |
| Compressed air pressure (MPa) | 0.6~0.7 |
| Compressed air consumption (0.4MPa air pressure) (L/once) | 10 |
| Cooling water consumption (L/MIN) | 35 |
Feature of six station high frequency brazing machine
1. The brazing machine is equipped with a six-station automatic indexing turnplate.
2. Manual workpiece loading system.
Introduction of six station high frequency brazing machine
The equipment is designed for six-station automatic high frequency induction brazing machines produced by Schneider and they are suitable for stationary contact of frame type switches.
