Engine Motor Welding System

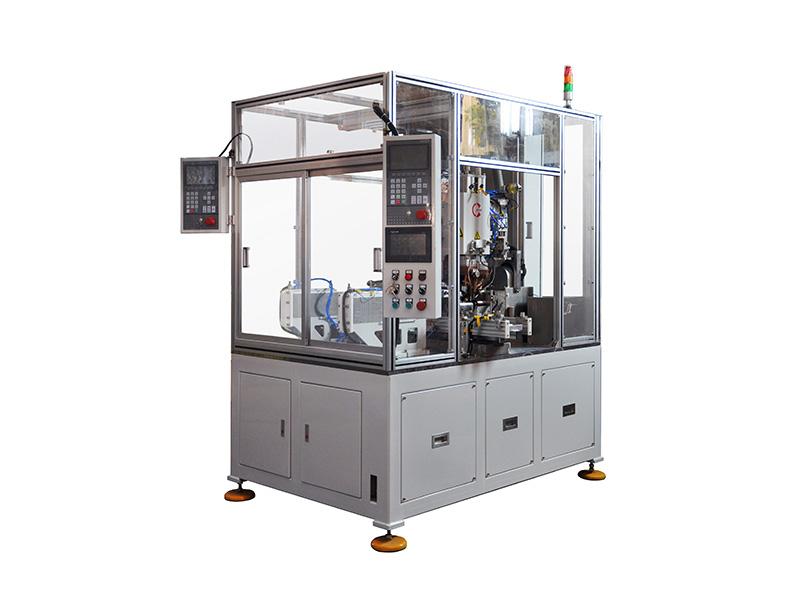

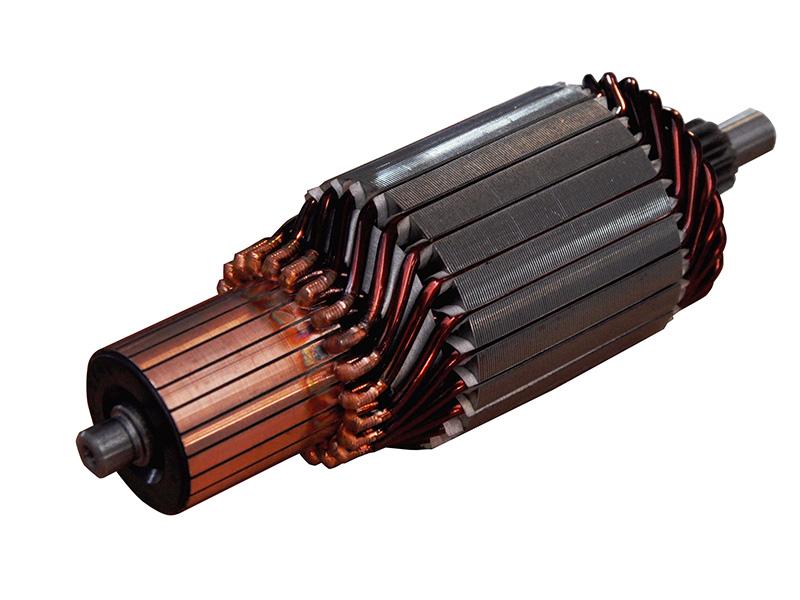

Welding Machine for Car Starter Armature
Dimension (unit: mm)
Item Height Length Width
Size 2440 2800 1600
Main technical parameter
Item Parameter
Rated capacity (KVA) 55*2
Power supply (V/φ/HZ) 380/3 /50
Primary current (A) 90
Rated duty cycle (%) 20
Secondary empty voltage (V) 8.9
Throat depth (mm) 120
Arm gap (mm) 380
Cylinder stroke(mm) 50
Size of electrode (mm) Φ12
Workpiece dimension (mm) Φ42-Φ60
Welding capacity (mm) Round wire Φ2~Φ3.5
Welding speed m/min (s/piece)(once/s) 35S/piece (by 23 groove rotor wire feeding welding)
Max. working pressure (kgf) 100
Compressed air pressure (MPa) 0.6~0.7
Compressed air consumption(0.4MPa air pressure, stroke:30mm) (L/once) 3
Cooling water consumption (L/MIN) 12
Primary cable specification (MM2) 3*16+2*6
Maximum short circuit current (A) 18000

Feature
1. The welding system is equipped with a double-headed welding component.
2. It can connect with production lines to facilitate quick loading and unloading of workpieces.

Background information
Welding processes are usually a stand-alone operation in the production of engine motors. Our welding systems feature a double headed welding process and can be installed directly onto the production line for high efficiency performance.
