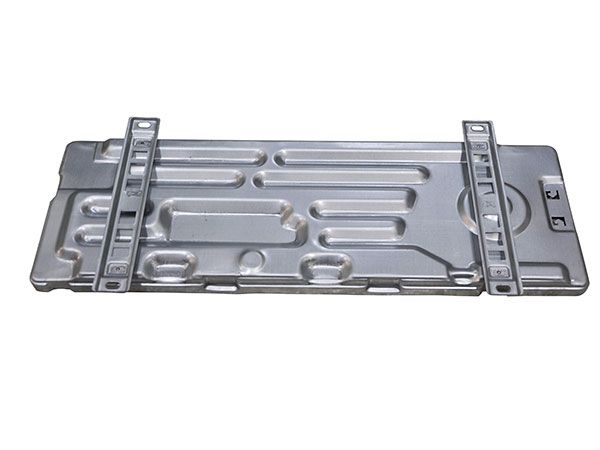

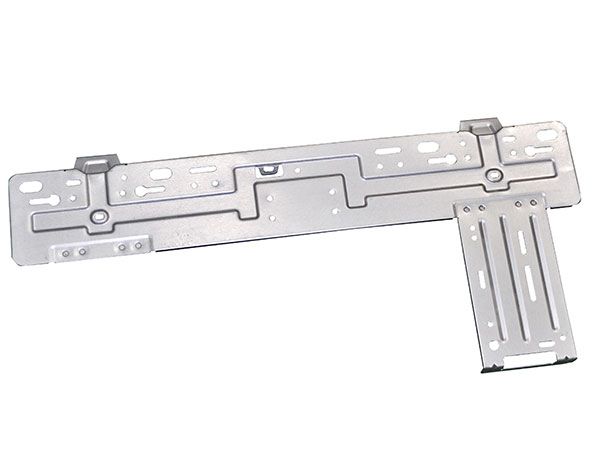

Air Conditioner Rear Panel Welder and Clinching Machine

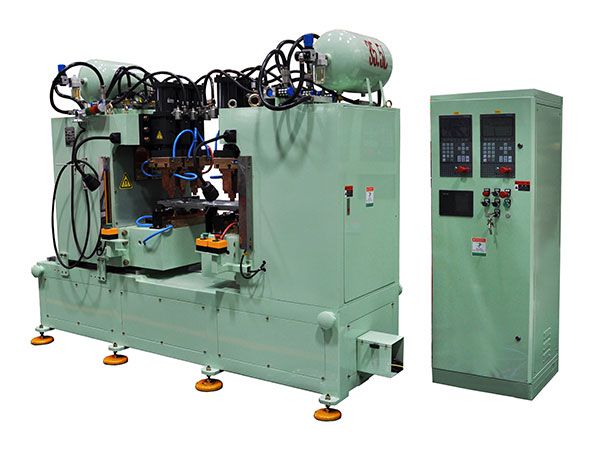

500KVA MFDC Welder for Air Conditioning Legs and Base Plate DB-500-14001

Model # DB-500-14001
Rated capacity KVA 500
Power supply V/Φ/Hz 380/3/50
Max. primary current A 110
Max. Short Circuit Current KA 43.2
Max. working pressure kN /
Dimensions (LxWxH) mm 3488x983x1995

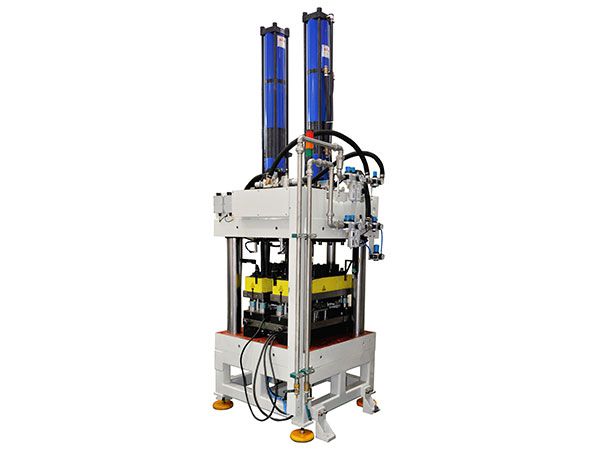

100T Clinching Machine ZMY-100-001-16003

Model # ZMY-100-001-16003
Power supply V/Φ/Hz 220/1/50
Max air pressure Mpa 0.6
Press force kN 100
Total stroke mm 100
Power stroke mm 12
Dimensions (LxWxH) mm 1100x1000x3300
