Dishwasher Welder, Bending Machine and Clinching Machine

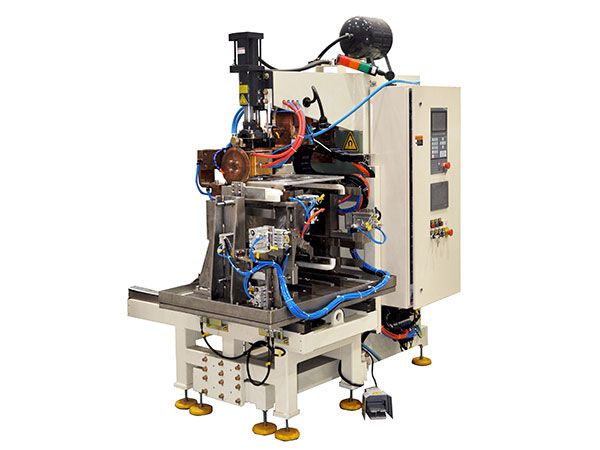

165KVA Seam Welder for Dishwasher’s Liner FB-165-C18002

Model # FB-165-C18002
Rated capacity KVA 165
Power supply V/Φ/Hz 380/3/50
Max. primary current A 160
Max. Short Circuit Current KA 30
Max. working pressure kN 4.6
Dimensions (LxWxH) mm 1806x1802x2045

165KVA MFDC Seam Welder for Dishwasher’s Liner and Bottom Plate FB-165-C18001

Model # FB-165-C18001
Rated capacity KVA 165
Power supply V/Φ/Hz 380/3/50
Max. primary current A 190
Max. Short Circuit Current KA 30
Max. working pressure kN 4.6
Dimensions (LxWxH) mm 2114x1400x2015

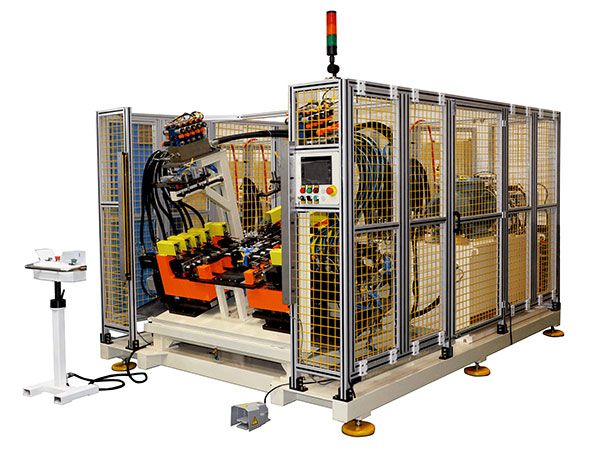

Bending & Clinching Machine for Dishwasher ZMY-015-001-17002

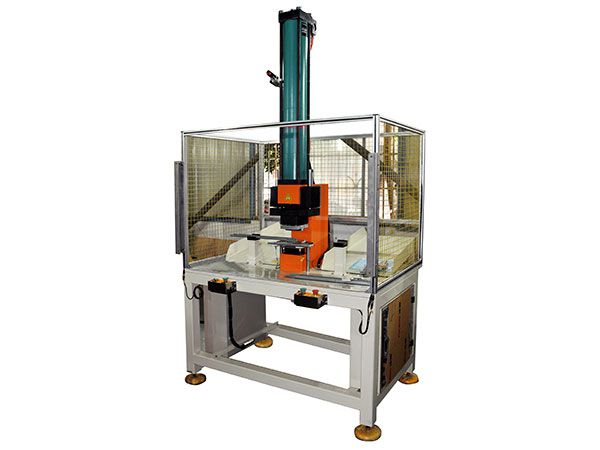

30T Clinch Machine for Dishwasher’s Strengthening Rib and Hinge ZMY-030-001-17001

Model # ZMY-030-001-17001
Power supply V/Φ/Hz 220/1/50
Max air pressure Mpa 0.6
Press force kN 283
Total stroke mm 80
Power stroke mm 12
Dimensions (LxWxH) mm 1500x1330x2710

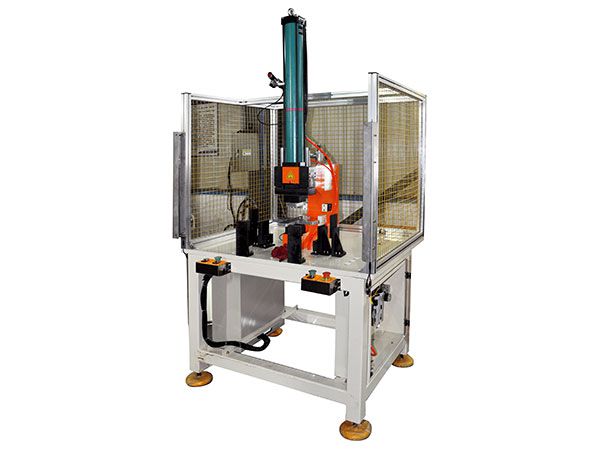

25T Clinching Machine for Dishwasher Strengthening Assembly ZMY-025-001-17002

Model # ZMY-025-001-17002
Power supply V/Φ/Hz 220/1/50
Max air pressure Mpa 0.6
Press force kN 250
Total stroke mm 50
Power stroke mm 12
Dimensions (LxWxH) mm 2720x1682x2245

50T Clinching Machine for Dishwasher Liner and Sealed Frame ZMY-050-001-17003

Model # ZMY-050-001-17003
Power supply V/Φ/Hz 380/3/50
Max air pressure Mpa 0.6
Press force kN 500
Total stroke mm 70
Power stroke mm 70
Dimensions (LxWxH) mm 2245x3120x2363

35T Clinching Machine for Dishwasher Liner and Strengthening Assembly ZMY-035-001-17002

Model # ZMY-035-001-17002
Power supply V/Φ/Hz 220/1/50
Max air pressure Mpa 0.6
Press force kN 350
Total stroke mm 70
Power stroke mm 70
Dimensions (LxWxH) mm 2245x3120x2363

8T Clinch Machine for Dishwasher's Top Plate and Water Pipe's Bracket ZMY-008-001-17002

Model # ZMY-008-001-17002
Power supply V/Φ/Hz 220/1/50
Max air pressure Mpa 0.6
Press force kN 76.4
Total stroke mm 80
Power stroke mm 12
Dimensions (LxWxH) mm 1240x1060x2325
