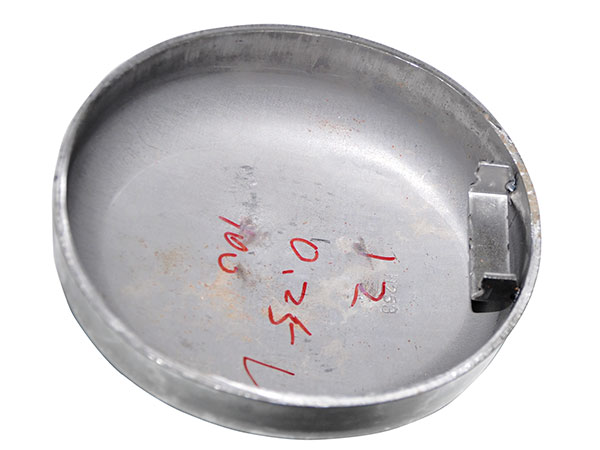

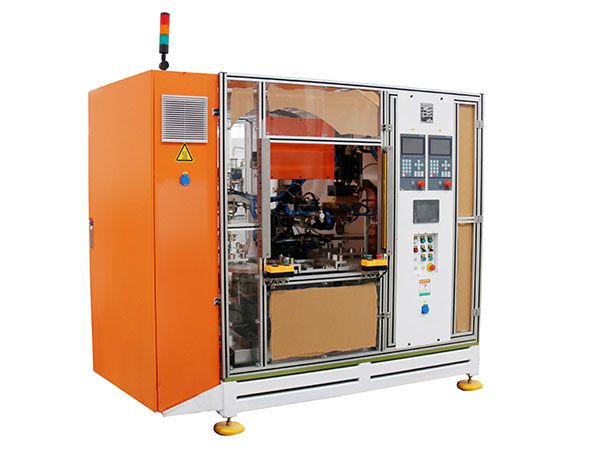

The MFDC automatic welder for top cover features high welding efficient, high yield rate and rust-proof after welding.
Model # | | |
Rated capacity | KVA | 2x220 |
Power supply | V/Φ/Hz | 380/3/50 |
Max. primary current | A | 225 |
Max. Short Circuit Current | KA | 30 |
Max. working pressure | kN | 11.8 |
Dimensions (LxWxH) | mm | 2260x2190x2070 |

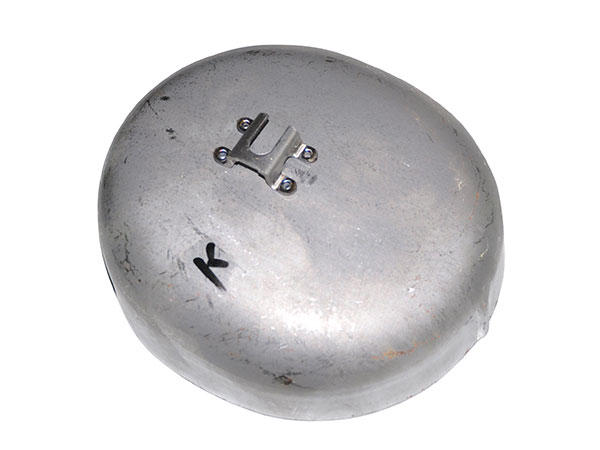

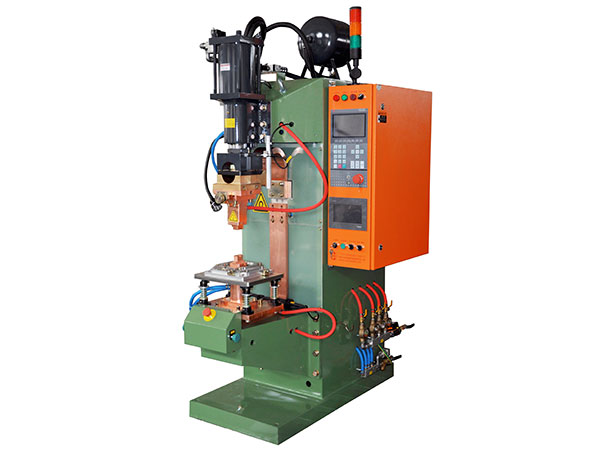

Our DB-220 MFDC welder for top cover features high welding efficient, high yield rate and rust-proof after welding.
Model # | | |
Rated capacity | KVA | 220 |
Power supply | V/Φ/Hz | 380/3/50 |
Max. primary current | A | 139 |
Max. Short Circuit Current | KA | 37 |
Max. working pressure | kN | 11.8 |
Dimensions (LxWxH) | mm | 1312x842x2092 |

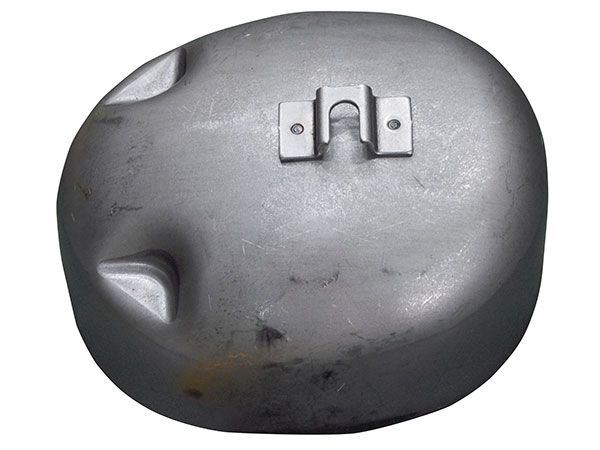

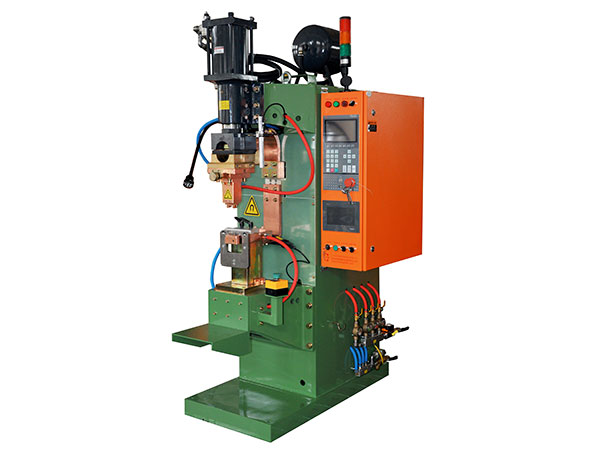

Our MFDC welder for top cover is specially customized, suitable for welding compressor shell and bracket.
Model # | | |
Rated capacity | KVA | 220 |
Power supply | V/Φ/Hz | 380/3/50 |
Max. primary current | A | 139 |
Max. Short Circuit Current | KA | 36 |
Max. working pressure | kN | 11.8 |
Dimensions (LxWxH) | mm | 1210x842x2092 |
