Supermarket Shelf MFDC Welder

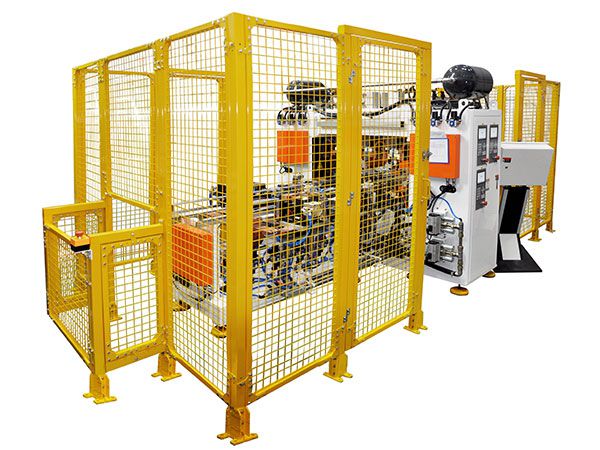

MFDC Automatic Welder for Supermarket Shelf ZA0-F16028

Main technical parameter
Model # ZA0-F16028
Rated capacity KVA 5x220
Power supply V/Φ/Hz 380/3/50
Max. primary current A 145
Max. Short Circuit Current KA 30
Max. working pressure kN 3
Dimensions (LxWxH) mm 5100x2576x2135

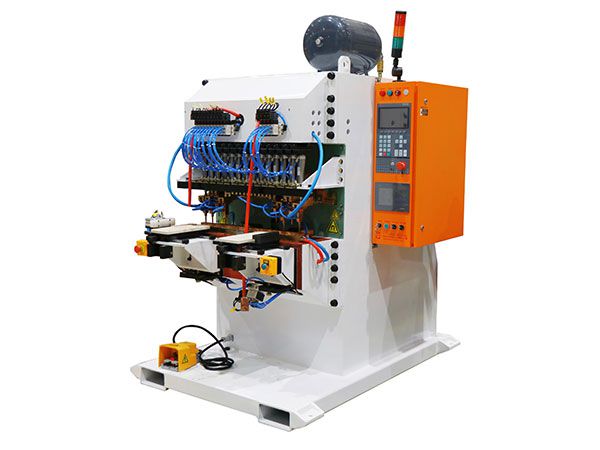

440KVA MFDC Multi Spot Welder for Supermarket Shelf Plate Strengthening Assembly DB-440-19004

Main technical parameter
Model # DB-440-19004
Rated capacity KVA 440
Power supply V/Φ/Hz 380/3/50
Max. primary current A /
Max. Short Circuit Current KA 28
Max. working pressure kN 0.7
Dimensions (LxWxH) mm 1633x1055x2223

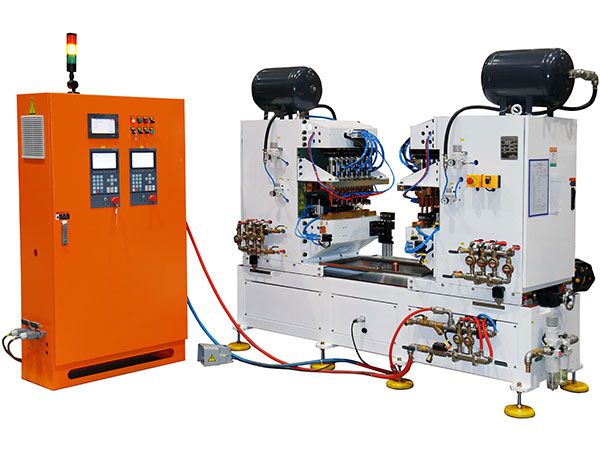

440KVA MFDC Multi Spot Welder for Supermarket Shelf Plate Strengthening Assembly DB-440-19005

Main technical parameter
Model # DB-440-19005
Rated capacity KVA 440
Power supply V/Φ/Hz 380/3/50
Max. primary current A /
Max. Short Circuit Current KA 28
Max. working pressure kN 0.7
Dimensions (LxWxH) mm 2947x1120x2095

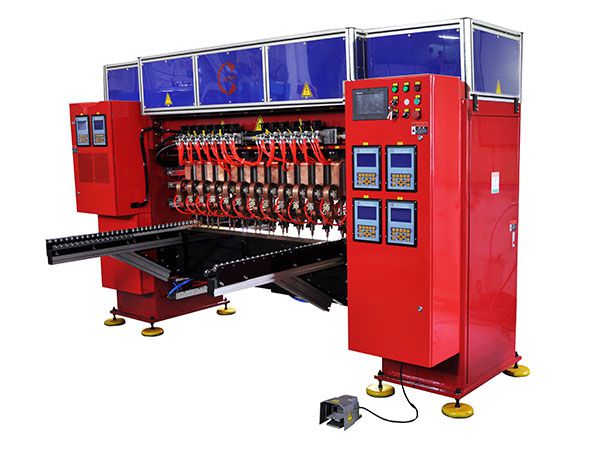

660KVA MFDC Multi Spot Welder with 24 Heads for Stiffener for Supermarket Shelf DB-660-15008

Main technical parameter
Model # DB-660-15008
Rated capacity KVA 12x55
Power supply V/Φ/Hz 380/3/50
Max. primary current A 63
Max. Short Circuit Current KA 19
Max. working pressure kN 0.8
Dimensions (LxWxH) mm 3094x1944x1950
