Water Pump Resistance Welding System

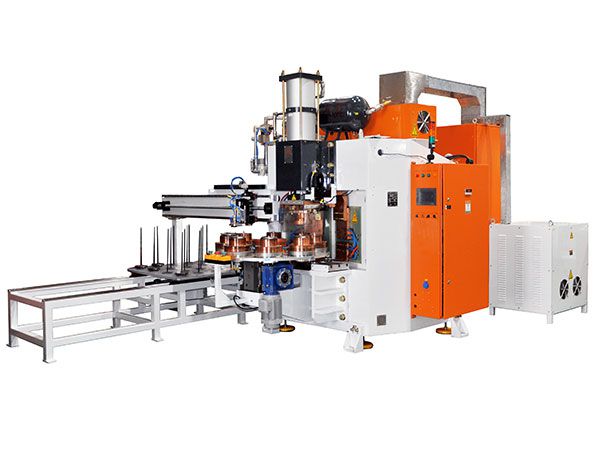

Water pump housing nut resistance welding system

Inquiry
Main technical parameter
Item Parameter
Power Supply (V/￠/HZ) 380/3/50
Discharge transformer power (KVA) 2*500 KVA
Capacitor 60pcs of 2000μF/1000V capacitor
Max primary current (A) 210
Primary cable (m㎡) 50
Rated duty cycle (%) 50
Secondary empty voltage (V) 18-23.5
Welding cylinder size(￠*L) φ250*150
Max working pressure(N) 48000
Compressed air pressure (MPa) 0.6-0.7
Cooling water consumption(L/MIN) 10
Dimensions (L*W*H) MM 3500*2100*3000

Feature
1. The water pump welder is equipped with 60KJ capacitor discharge welding technology.
2. The welding system requires manual feeding and discharging of the workpieces.

Background information

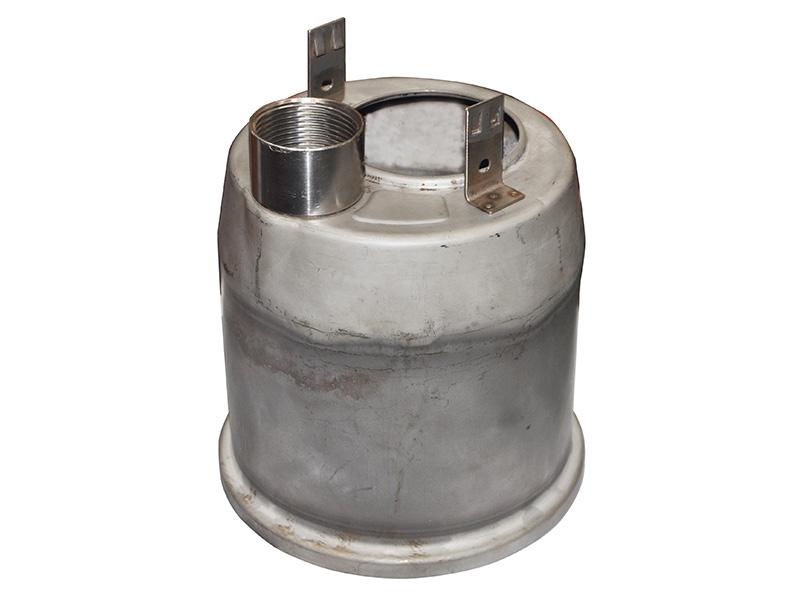

The welding machine is designed for 1 inch nut water pump housings. The traditional technology used for this process is argon tungsten-arc welding, which has a low efficiency and high labor cost. Our resistance welding technology significantly improves production efficiency and quality.

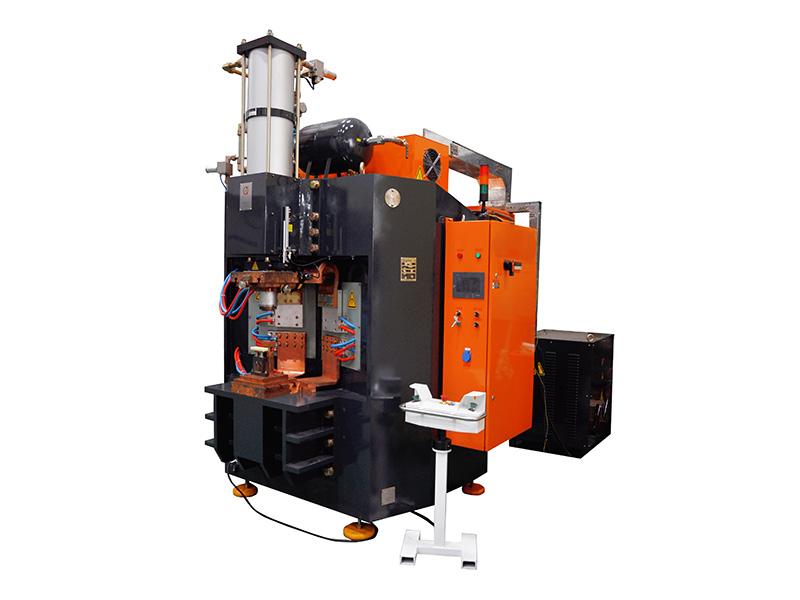

Water pump blade welding machine

Inquiry
Dimensions (unit: mm)
Item Height Length Width
Dimensions 2550 4570 2000
Main technical parameter
Item Parameter
rated capacity (uf) 120000
power supply (KVA/V/￠/HZ) 135/380/3/50
primary current (A) 210
rated duty cycle (%) 50
secondary floating voltage (V) 18-23.5
Secondary voltage regulating series 2
arm gap (mm) 100
cylinder stroke (mm) 150
welding speed (m/min) (s/piece)(once/s) 6
Max. Working Pressure (kgf) 2454
compressed air pressure (MPa) 0.6~0.7
compressed air consumption(0.5MPaair pressure,stroke:60mm) (L/once) 28
cooling water consumption (L/MIN) 10
primary cable specification (MM2) 50
maximum short circuit current (KA) 240

Feature
1. 60KJ capacitor discharge welding machine.
2. The welding machine adopts an eight station automatic turnplate.
3. Manual workpiece feeding and unloading.

Background information

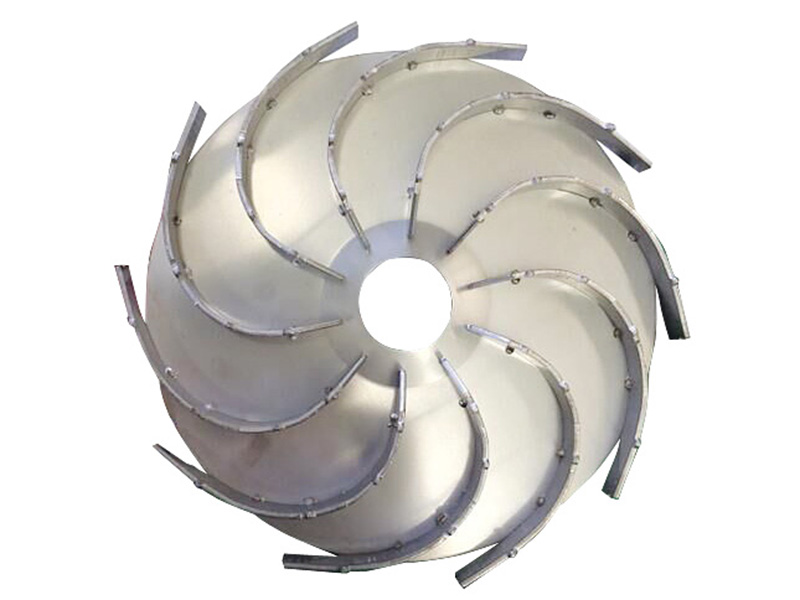

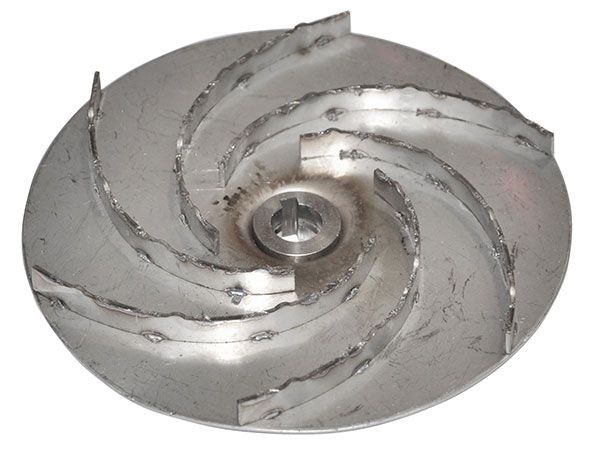

The welding system is designed for welding water pump blades. It is intended for the replacement of traditional casting technologies. The large welding current is not a problem as we adopt a capacitor discharge welding technology, which significantly reduces the demand for power capacity.

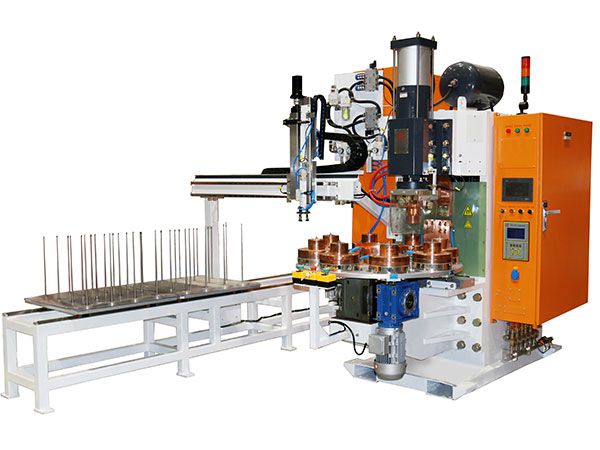

60000J Capacitor Discharge Spot/Press Welder for Water Pump Blade with 8 Station DR-60000-18001

Inquiry
Dimensions (unit: mm)
Model # DR-60000-18001
Rated capacity KJ 60
Power supply V/Φ/Hz 380/3/50
Max. primary current A 187
Max. Short Circuit Current kA 96.7
Max. working pressure kN 29
Dimensions (LxWxH) mm 5128x3331x2528

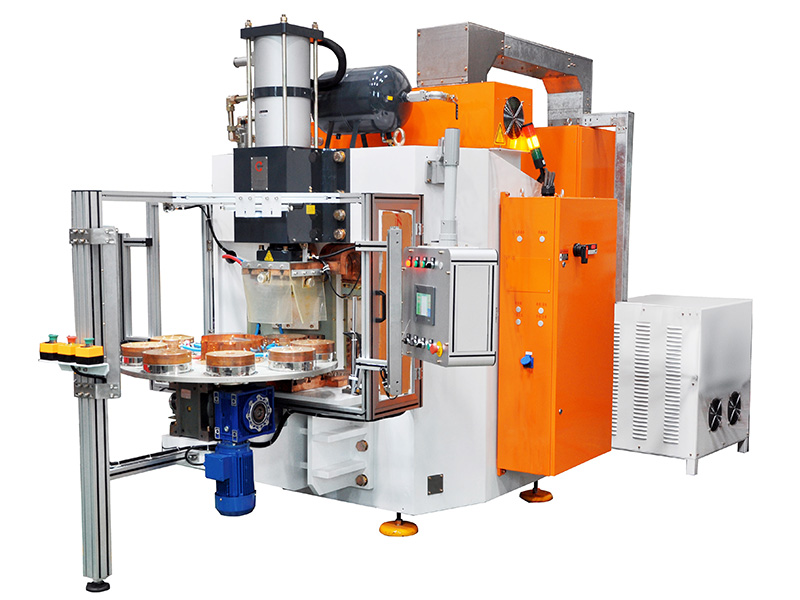

30000J Capacitor Discharge Spot/Press Welder for Water Pump Blade with 8 Station DR-30000-18007

Inquiry
Dimensions (unit: mm)
Model # DR-30000-18007
Rated capacity KJ 30
Power supply V/Φ/Hz 380/3/50
Max. primary current A 187
Max. Short Circuit Current KA 103
Max. working pressure kN 18.5
Dimensions (LxWxH) mm 3312x2646x2314
