Bus Bar Welding and Clinching Machines

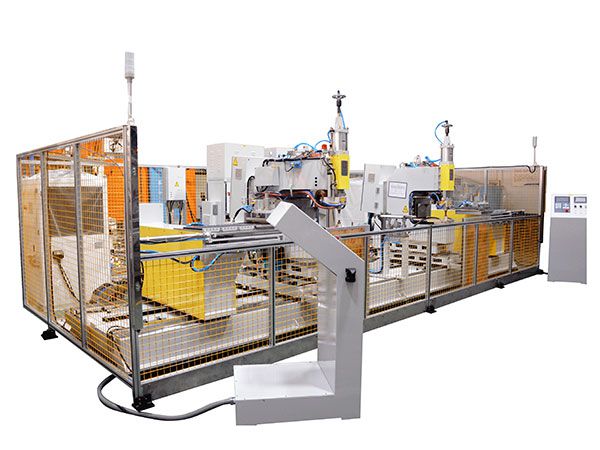

880KVA MFDC Double Heads Spot Welder for Aluminum Bus Bar DB-880-15001

Model # DB-880-15001
Rated capacity KVA 2x440
Power supply V/Φ/Hz 380/3/50
Max. primary current A 320
Max. Short Circuit Current KA 60
Max. working pressure kN 6
Dimensions (LxWxH) mm 3930x6890x2510

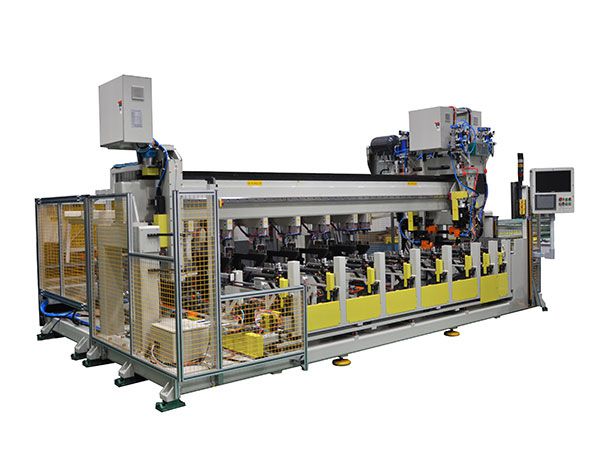

15T Automatic Assembly Clinch Machine for the Aluminum Bus Bar ZMY-015-001-14001

Model # ZMY-015-001-14001
Power supply V/Φ/Hz 380/3/50
Max air pressure Mpa 0.6
Press force kN 47
Total stroke mm 35
Power stroke mm 10
Dimensions (LxWxH) mm 14280x4000x2970
