Low Voltage Electronics Welding Solution

Frame Breaker Welder

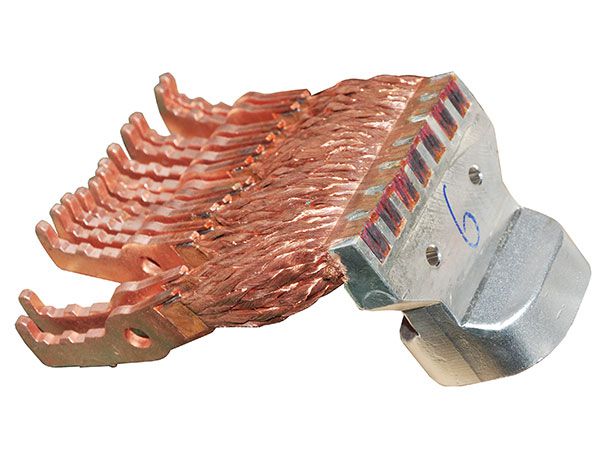

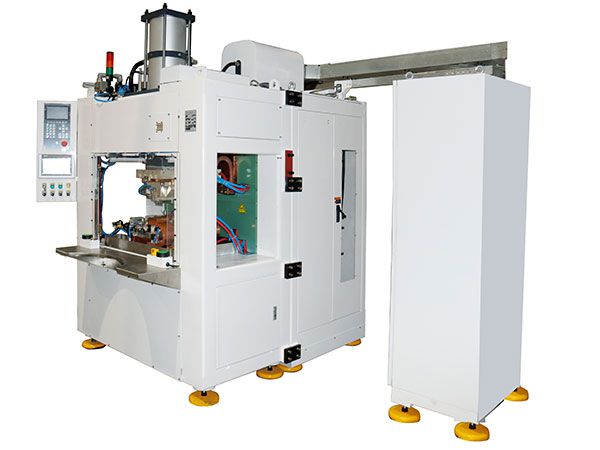

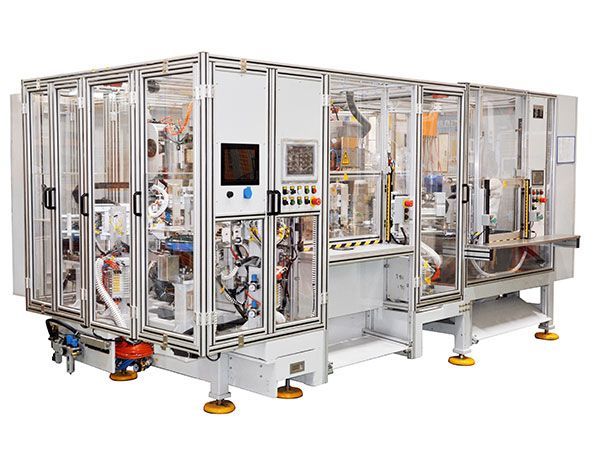

2500KVA MFDC Welder for Frame Breaker Bus Bar DB-2500-20001

With smaller welding transformer, iron and copper loss can be reduced; with shorter welding time and smaller heat-affected area, the MFDC welder for frame breaker bus bar features 30% more energy-saving than AC spot welder and secondary rectifier spot welder.

Model # DB-2500-20001
Rated capacity KVA 2500
Power supply V/Φ/Hz 380/3/50
Max. primary current A 50000
Max. Short Circuit Current KA 150
Max. working pressure kN 47
Dimensions (LxWxH) mm 3461x3201x2668

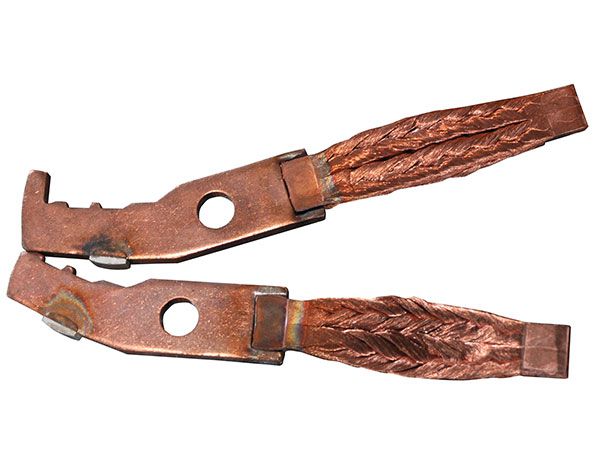

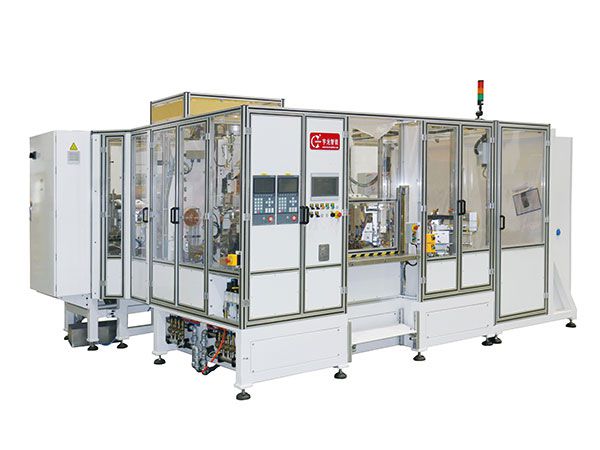

770KVA MFDC Welder for Electrical Contact

Model # DB-770-20001
Rated capacity KVA 770
Power supply V/Φ/Hz 380/3/50
Max. primary current A 340/360
Max. Short Circuit Current KA 53/50
Max. working pressure kN 6/15
Dimensions (LxWxH) mm 4707x3580x2495

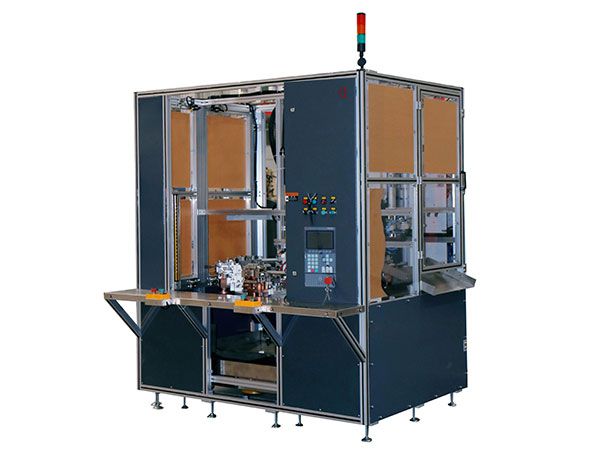

Automatic HF Soldering Welder with 6 Stations ZA0-F15015

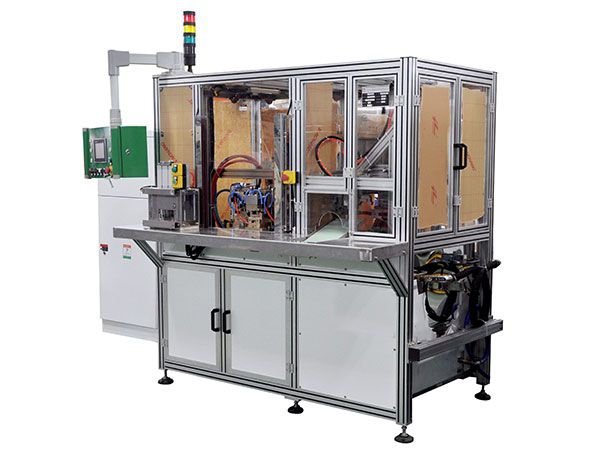

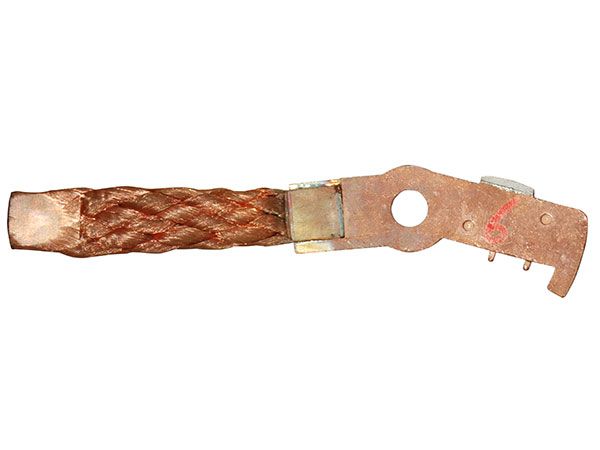

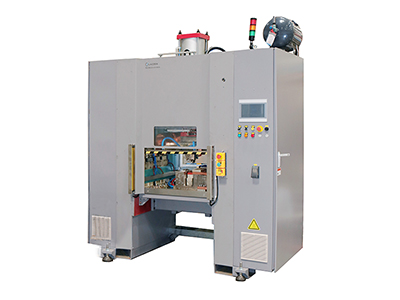

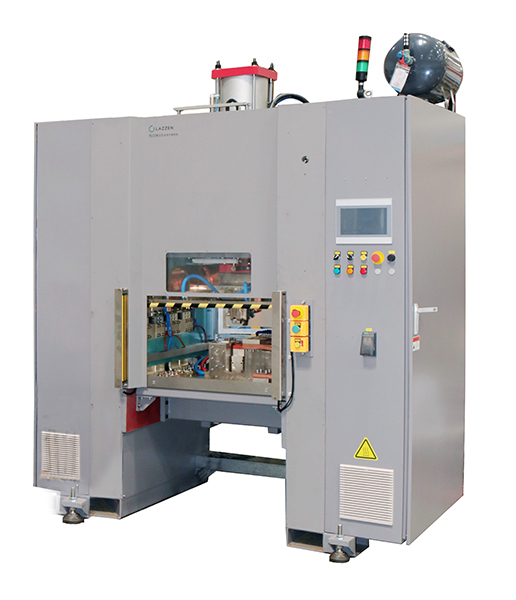

880KVA MFDC Welder for Electrical Contact DB-880-17006

Model # DB-880-17006
Rated capacity KVA 880
Power supply V/Φ/Hz 380/3/50
Max. primary current A 365
Max. Short Circuit Current KA 59.8
Max. working pressure kN 7.3
Dimensions (LxWxH) mm 5006x2668x2166

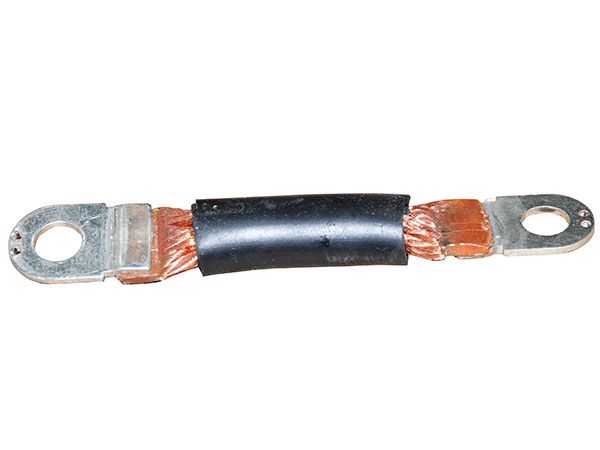

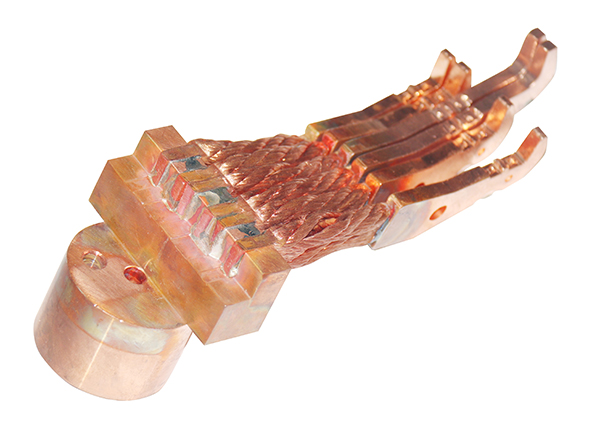

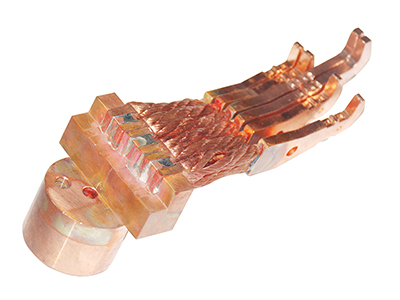

880KVA MFDC Welder with Rotary Wheel and 8 Stations for Cable

Model # DB-880-19004
Rated capacity KVA 880
Power supply V/Φ/Hz 380/3/50
Max. primary current A 400
Max. Short Circuit Current KA 110
Max. working pressure kN /
Dimensions (LxWxH) mm 2010x2648x2512
