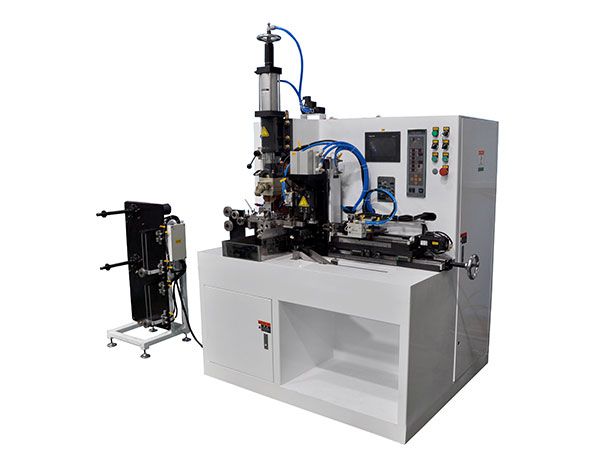

Stranded Wire Welding and Cutting Machines

880KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-880-14007

Model # DB-880-14007
Rated capacity KVA 880
Power supply V/Φ/Hz 380/3/50
Max. primary current A 700
Max. Short Circuit Current KA 110
Max. working pressure kN 25
Dimensions (LxWxH) mm 2430x1350x2600

660KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-660-13009

Model # DB-660-13009
Rated capacity KVA 660
Power supply V/Φ/Hz 380/3/50
Max. primary current A 500
Max. Short Circuit Current KA 75
Max. working pressure kN /
Dimensions (LxWxH) mm 2874x1320x2297

440KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-440-14020

Model # DB-440-14020
Rated capacity KVA 440
Power supply V/Φ/Hz 380/3/50
Max. primary current A 140
Max. Short Circuit Current KA 60
Max. working pressure kN 12
Dimensions (LxWxH) mm 2469x1260x2225

330KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-330-15004

Model # DB-330-15004
Rated capacity KVA 330
Power supply V/Φ/Hz 380/3/50
Max. primary current A 240
Max. Short Circuit Current KA 43
Max. working pressure kN 9
Dimensions (LxWxH) mm 2600x1260x2570

165KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-165-17005

Model # DB-165-17005
Rated capacity KVA 165
Power supply V/Φ/Hz 380/3/50
Max. primary current A 125
Max. Short Circuit Current KA 31
Max. working pressure kN 9.8
Dimensions (LxWxH) mm 1500x2639x2225

110KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-110-19003

Model # DB-110-19003
Rated capacity KVA 110
Power supply V/Φ/Hz 380/3/50
Max. primary current A 120
Max. Short Circuit Current KA 24
Max. working pressure kN /
Dimensions (LxWxH) mm 1915x950x2306

55KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-55-17101

Model # DB-55-17101
Rated capacity KVA 55
Power supply V/Φ/Hz 380/3/50
Max. primary current A 121
Max. Short Circuit Current KA 20
Max. working pressure kN 2.5
Dimensions (LxWxH) mm 990x1370x1797

80KVA AC Customized Welding and Cutting Machine for Braided Copper DN-80-13006

Model # DN-80-13006
Rated capacity KVA 80
Power supply V/Φ/Hz 380/1/50
Max. primary current A 158
Max. Short Circuit Current KA 23
Max. working pressure kN /
Dimensions (LxWxH) mm 1300x1070x1957

50KVA AC Customized Welding and Cutting Machine for Braided Copper DN-50-14005

Model # DN-50-14005
Rated capacity KVA 50
Power supply V/Φ/Hz 380/1/50
Max. primary current A 220
Max. Short Circuit Current KA 18
Max. working pressure kN /
Dimensions (LxWxH) mm 1300x1070x1958
