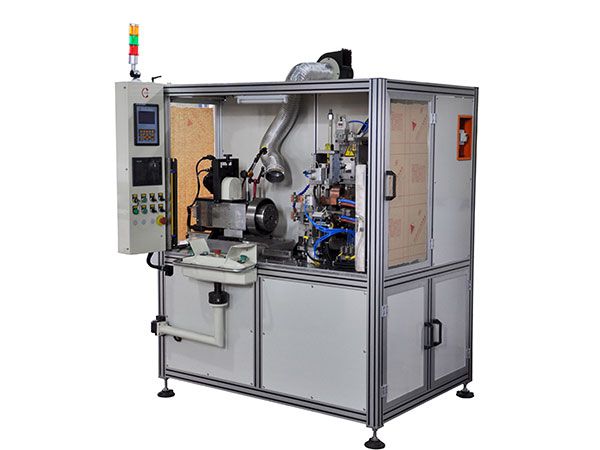

Car Electric Generator MFDC Welder

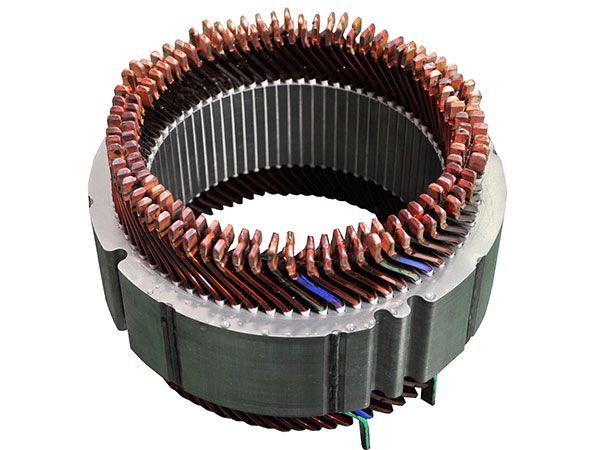

The MFDC welder for motor stator features low material splash, which is more eco-friendly than traditional techniques. Welding process is assisted with servo-control pressing technique, which offers better pressure stability and convenience in adjusting; compressed air is not needed during the process.

Specifications
Model # DB-55-13005
Rated capacity KVA 55
Power supply V/Φ/Hz 380/3/50
Max. primary current A 88
Max. Short Circuit Current KA 19.3
Max. working pressure kN /
Dimensions (LxWxH) mm 1324x1718x1920

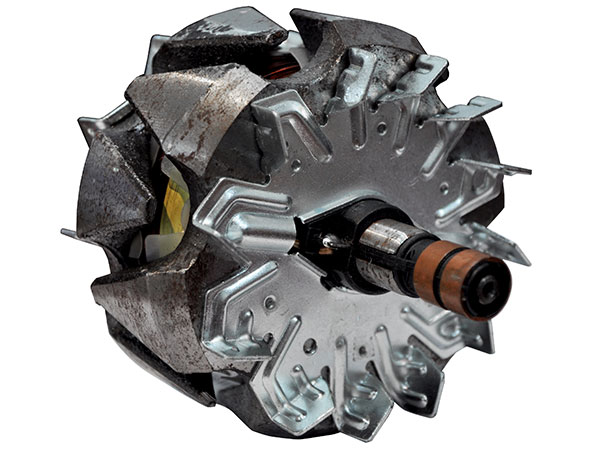

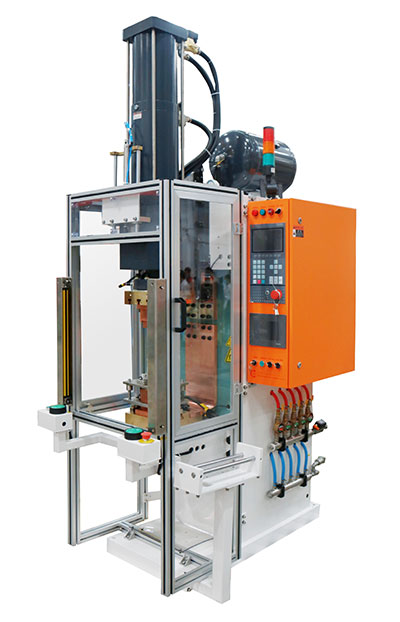

2x440KVA MFDC Welder for Rotor Fan DB-880-20001

Specifications
Model # DB-880-20001
Rated capacity KVA 2x440
Power supply V/Φ/Hz 380/3/50
Max. primary current A 350
Max. Short Circuit Current KA 60
Max. working pressure kN 15
Dimensions (LxWxH) mm 1713x1730x2566

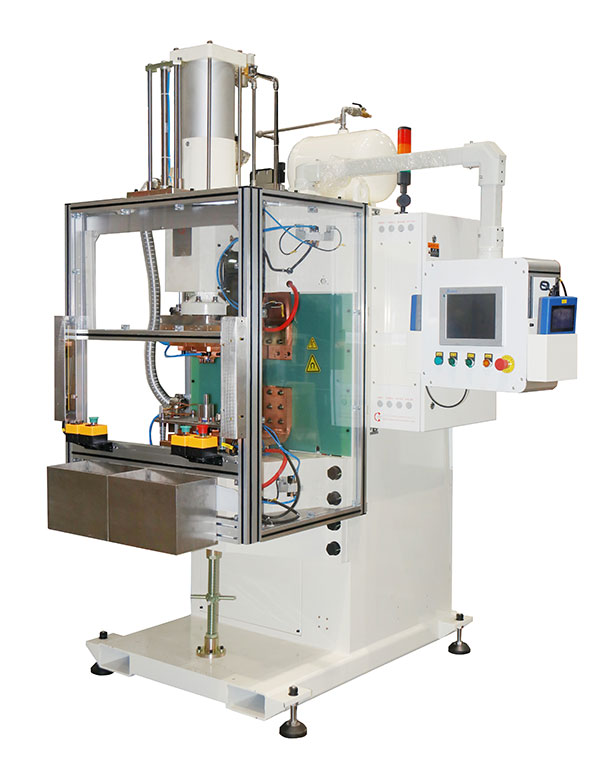

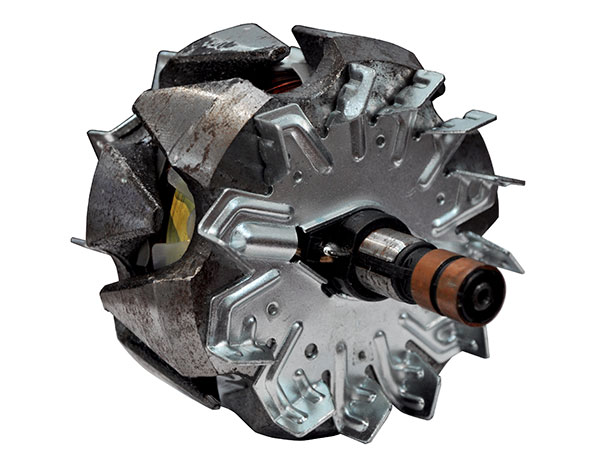

440KVA MFDC Welder for Welding Motor Fan to Rotor DB-440-20002

Specifications
Model # DB-440-20002
Rated capacity KVA 440
Power supply V/Φ/Hz 380/3/50
Max. primary current A 350
Max. Short Circuit Current KA 60
Max. working pressure kN 15
Dimensions (LxWxH) mm 881x1469x2732
