Electric Car Motor Welder

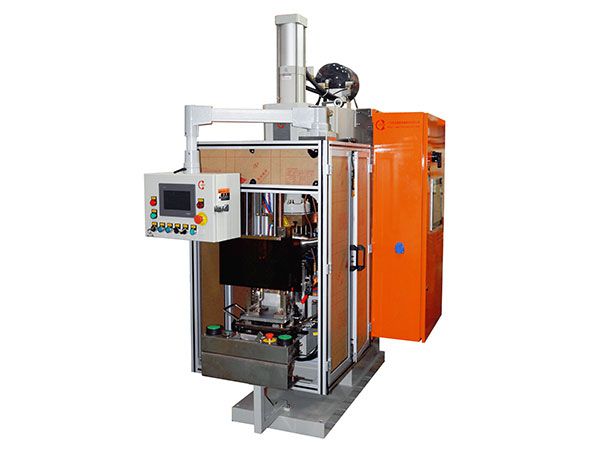

110KVA MFDC Welder for Motor DB-110-17006

Features

1. HERON's resistance welder for motor features short welding time, high thermal efficient and good welding performance.
2. Copper consumption is reduced due to smaller transformer.

Specifications
Model # DB-110-17006
Rated capacity KVA 110
Power supply V/Φ/Hz 380/3/50
Max. primary current A 165
Max. Short Circuit Current KA 20
Max. working pressure kN 4.6
Dimensions (LxWxH) mm 742x1515x2352

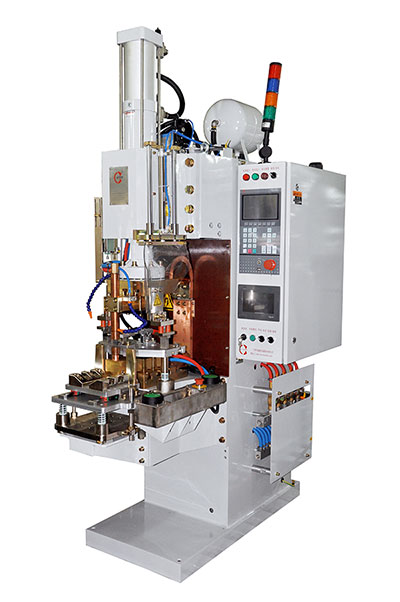

250KVA MFDC Welder for Motor DB-250-19006

The MFDC welder for motor features good flexibility, able for dealing with all welding points without moving.

Specifications
Model # DB-250-19006
Rated capacity KVA 250
Power supply V/Φ/Hz 380/3/50
Max. primary current A 300
Max. Short Circuit Current KA 40
Max. working pressure kN 3.6
Dimensions (LxWxH) mm 2760x1506x3439

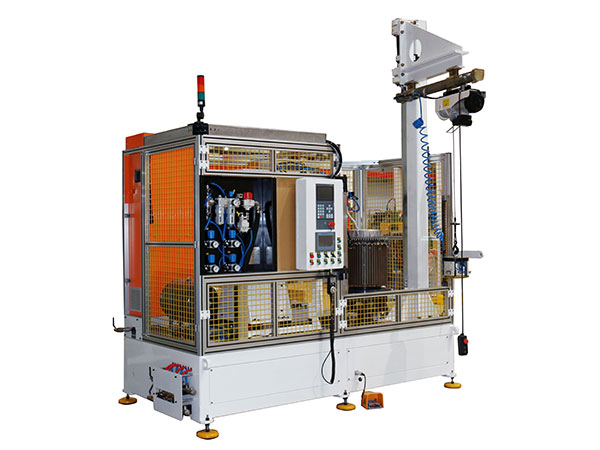

220 KVA Invert/MFDC Welder

Specifications
Model # DB-165 DB-220
Rated capacity KVA 165 220
Power supply V/Φ/Hz 380/3/50 380/3/50
Max. primary current A 68 120
Max. Short Circuit Current KA 29 40
Max. working pressure kN 7.2 6
Dimensions (LxWxH) mm 1673x1250x2364 1673x1250x2364
