Motor Welding Solution
Car Starter Welder

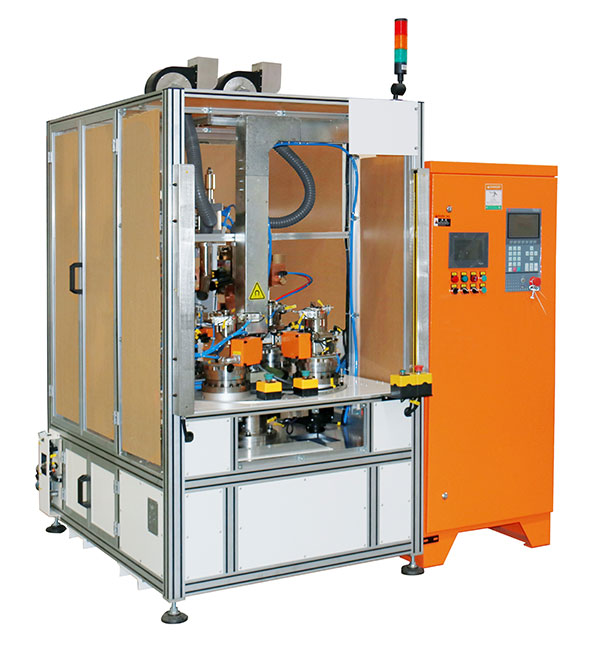

110 KVA MFDC Double Head Welder for Armature DB-110-Q14001

Inquiry
Specifications
Model # DB-110-Q14001
Rated capacity KVA 2x55
Power supply V/Φ/Hz 380/3/50
Max. primary current A 90
Max. Short Circuit Current KA 18
Max. working pressure kN 10
Dimensions (LxWxH) mm 2800x1600x2440

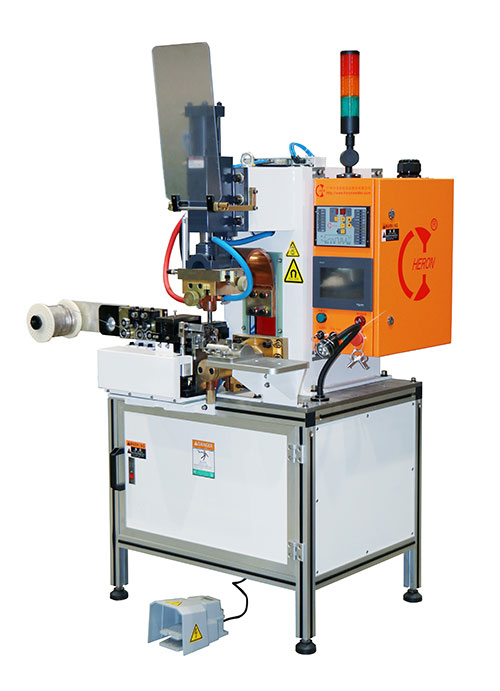

55KVA MFDC Welder for Motor Stator Coil DB-55-19002

Inquiry

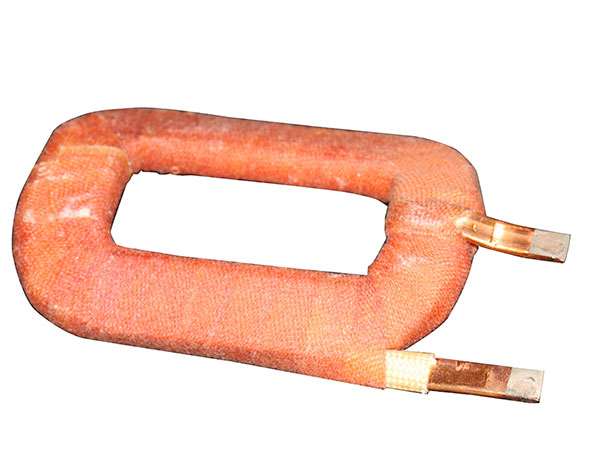

The MFDC spot/press welder for motor stator coil is especially suitable for welding metal materials such as aluminum, copper, galvanized sheet, nickel, etc., enameled wire, flexible coupling and induction coil.

Specifications
Model # DB-55-19002
Rated capacity KVA 55
Power supply V/Φ/Hz 380/3/50
Max. primary current A 60
Max. Short Circuit Current KA 18
Max. working pressure kN 1.4
Dimensions (LxWxH) mm 1691x1993x2345

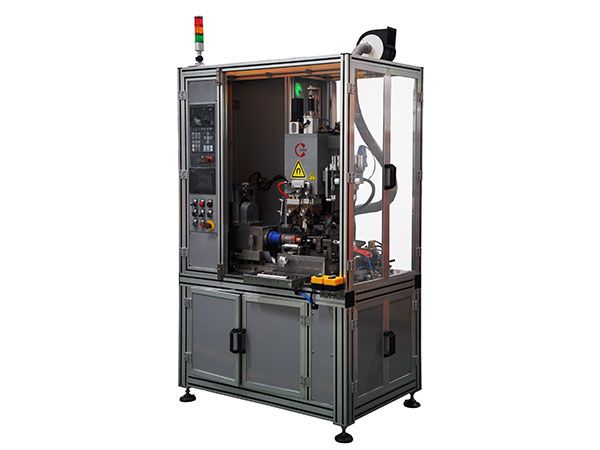

25 KVA AC Welder for Motor Stator Coil DN-25-19002

Inquiry
Specifications
Model # DN-25-19002
Rated capacity KVA 25
Power supply V/Φ/Hz 380/1/50
Max. primary current A 70
Max. Short Circuit Current KA 14
Max. working pressure kN 1.5
Dimensions (LxWxH) mm 776x778x1554
