Car Engine Oil Pan Welding System

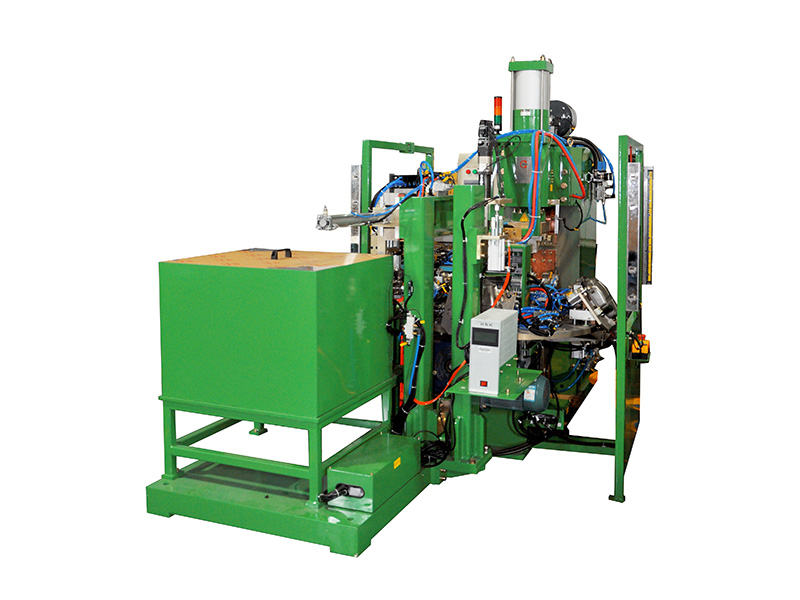

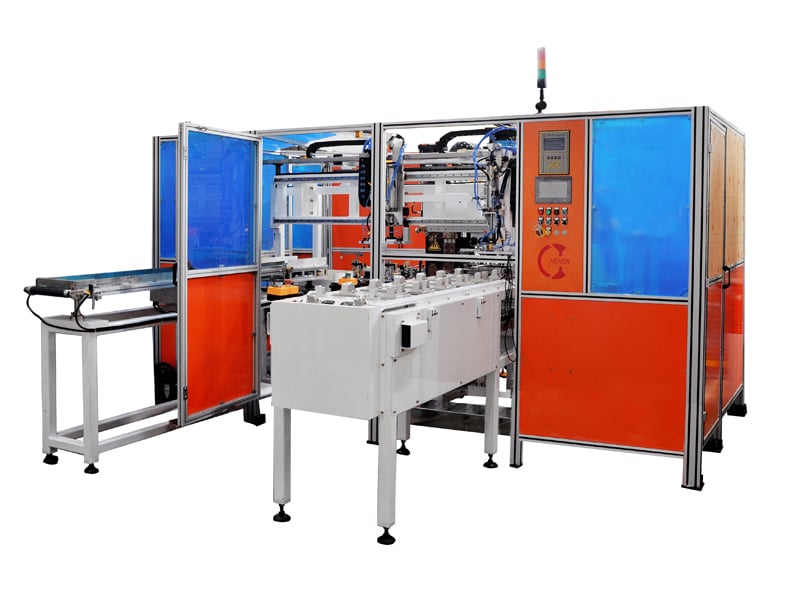

Car engine oil pan welding machine
Dimension (unit: mm)
Item Height Length Width
Size 2290 3250 2060
Main technical parameter
Item Parameter
Rated capacity (KVA) 440
Power supply (V/φ/HZ) 380/ 3 /50HZ
Primary current (A) 350
Rated duty cycle (%) 20
Secondary empty voltage (V) 10.4
Throat depth (mm) 300
Arm gap (mm) 510
Cylinder stroke (mm) 150
Electrode dimension (mm) 20X40X50

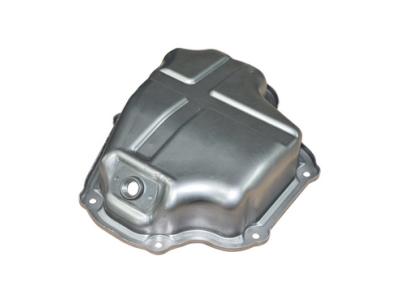

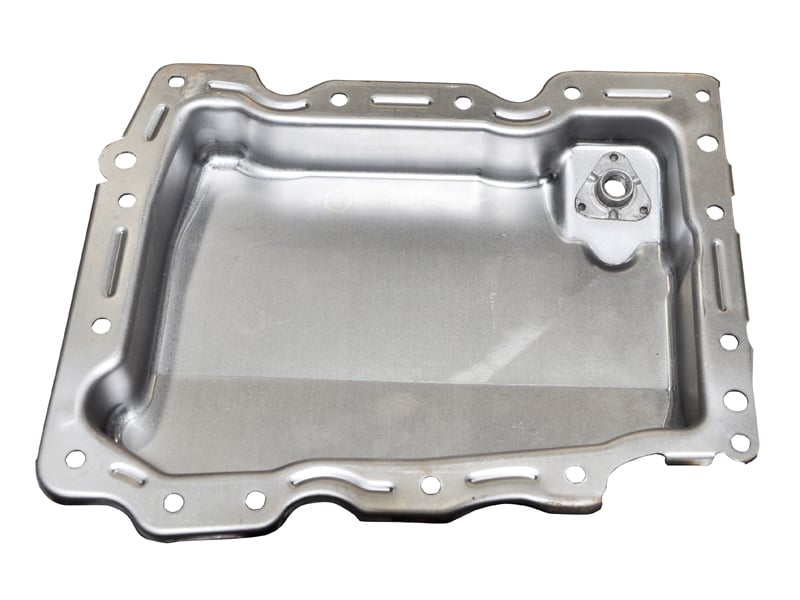

Workpiece dimension (mm) 60X250X300(oil pan)
Welding speed m/min (s/piece)(time/s) 10.5 s/piece
Max. working pressure (kgf/0.5MPa) 1500
Compressed air pressure (MPa) 0.6~0.7
Compressed air consumption (0.4MPa air pressure) (L/ welding spot) 14
Cooling water consumption (L/MIN) 24
Primary cable specification (MM2) 3*50+2*16
Max. short cut current (A) 67000

Feature
1. The car engine oil pan welding machine is equipped with a four-station turnplate that maximizes production throughput.
2. The welding machine utilizes a medium frequency welding system.
3. Two automatic loading and automatic nut testing systems.

Background introduction
The car engine oil pan welding machine is a specialized piece of equipment that is designed to realize the automatic production of oil outlets of oil pans used for automobiles. The metal resistance welding machine features a manual loading of stamping parts, an oil nozzle automatic loading and welding system, and an automatic clinching and online testing function.
