Car Fuel Tank Cap Cover AC Welder

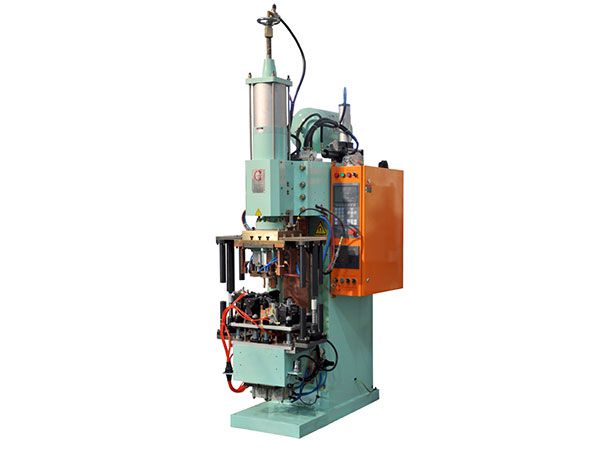

100KVA AC Welder for Car Fuel Tank Cap Cover DN-100-13014

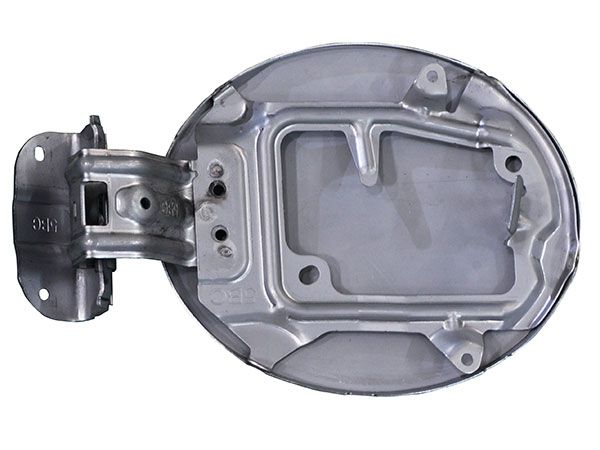

The AC welder applies multiple welding guns in order to weld the fuel tank cap cover together. The design grants high efficient, high precision, high welding spot sturdiness and high yield rate; reject ratio < 1/10000, cost-effecitve and intelligent.

Basic Parameters
Model # DN-100-13014
Rated capacity KVA 100
Power supply V/Φ/Hz 380/3/50
Max. primary current A 210
Max. Short Circuit Current KA 24.6
Max. working pressure kN 2.4
Dimensions (LxWxH) mm 2433x1621x1729

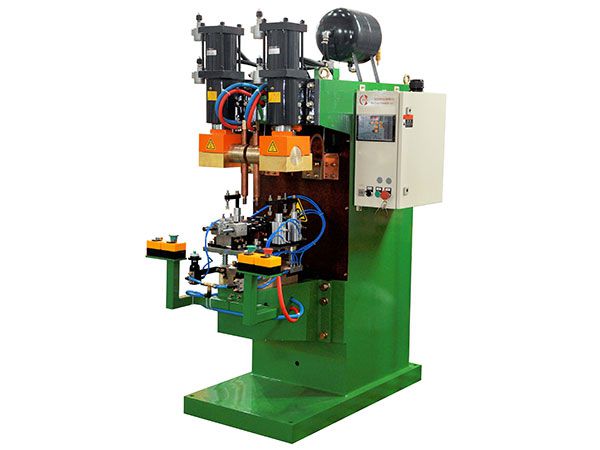

150KVA Dual-head AC Spot Welder DN-150-15012

HERON’s AC welder applies dual-head design, with which two spot-welding processes can be done at the same time, which grants shorter welding time and better efficient.

Basic Parameters
Model # DN-150-15012
Rated capacity KVA 150
Power supply V/Φ/Hz 380/3/50
Max. primary current A 280
Max. Short Circuit Current KA 34
Max. working pressure kN 15
Dimensions (LxWxH) mm 133x913x1820

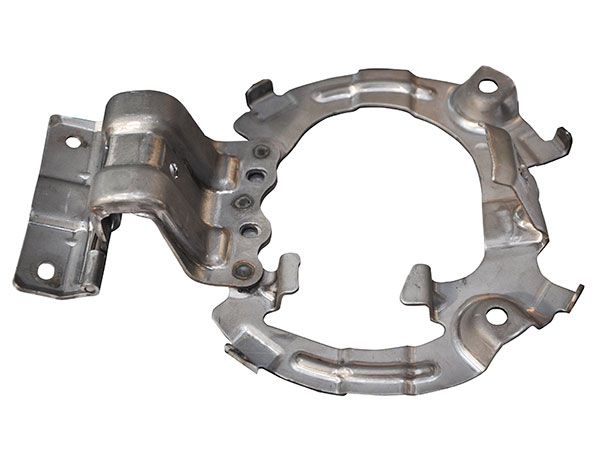

30KVA MFDC Welder for Fuel Tank Cap Cover Frame DB-330-13004

This welder is suitable for welding car fuel tank cap cover frame, able for welding other types of fuel tank cover by changing tooling.

Basic Parameters
Model # DB-330-13004
Rated capacity KVA 330
Power supply V/Φ/Hz 380/3/50
Max. primary current A 160
Max. Short Circuit Current KA 55.4
Max. working pressure kN 2.4
Dimensions (LxWxH) mm 1219x904x2690
