Car Motor Welder

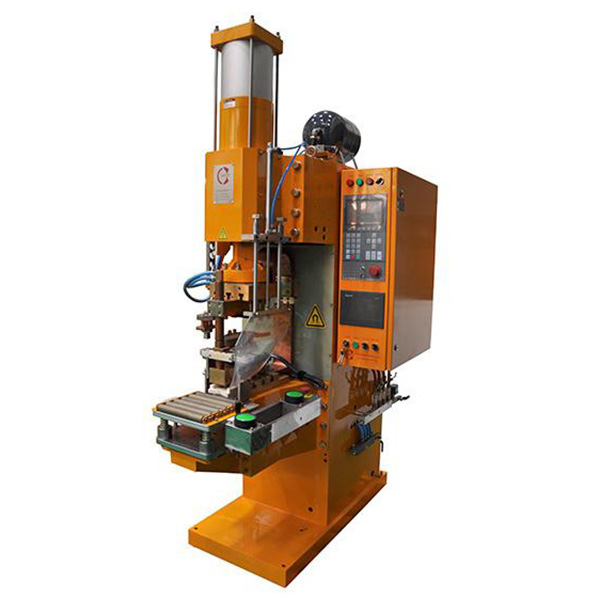

Car motor leading wire welding machine
Dimension (unit: mm)
Item Height Length Width
Size 2420 1800 1350
Main technical parameter
Item Parameter
Rated Capacity (KVA) 220
Power Supply (V/φ/HZ) 380/3P/50HZ
Max Input Current (A) 120
Rated Duty cycle (%) 20
Secondary empty Voltage (V) 10.4
Secondary voltage adjust level 1
Throat Depth (mm) 420
Arm Gap (mm) 246
Cylinder Stroke (mm) 120
Electrode Size (mm) 100*8*8
Workpiece Size (mm) Ф35 *72
Welding Speed (s/ piece) 10
Max Working Pressure (N/0.5MPa) 6000
Compressed Air Pressure (MPa) 0.6 ≦P≤0.8
Compressed Air Consumption (L/ welding spot) (0.4MPa,Stroke 30mm ) 3.56
Cooling Water Consumption (L/MIN) 12
Primary Cable Specification (MM2) 3*35+2*16
Max. Short Cut Current (KA ) 4000
Dimension (L*W*H) (mm ) 1800*1350*2420

Feature
1. The Heron car motor welder is delivered in 220KVA or 440KVA medium frequency DC power supply models.
2. The working head can be outfitted with a moving fixture for precise positioning up, down, left, or right
3. The workpiece can adopt moving fixture for up, down, left or right with precise positioning.

Background introduction

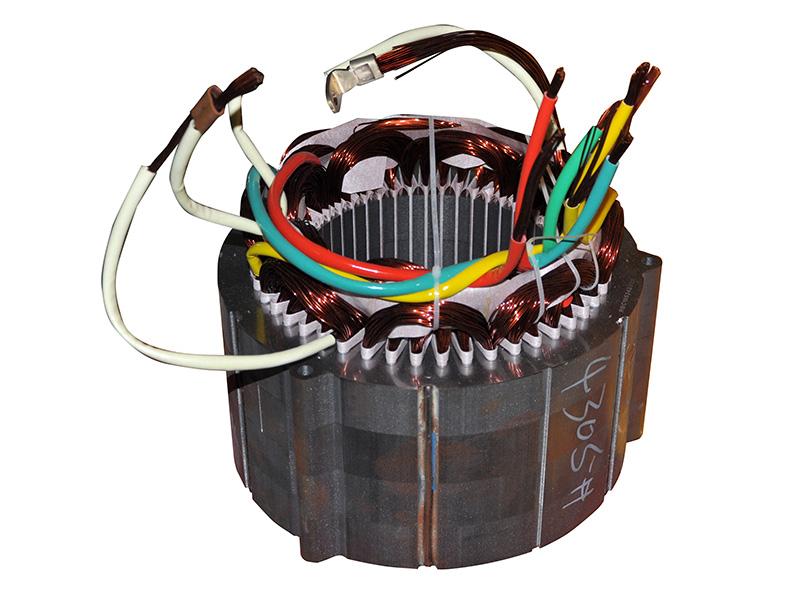

The car motor welder is a copper wire welding machine was introduced by our company for connection of electric car motor wires. The welder gasifies oil paint of varnished wires through a quick heating process for terminals. Secondly, it melts the copper wire and terminal by increasing its current in order to realize reliable welding quality. The welding technology is different from processes that polish the oil paint and then plate the wire with tin. This improves overall quality and working efficiency.
