| Item | Height | Length | Width |
| Size | 2880 | 2000 | 2600 |
| Item | Parameter |
| Rated capacity (KVA) | 2*660 |
| Power supply (V/￠/HZ) | 380/ 3 /50 |
| Primary current (A) | 500 |
| Rated duty current (%) | 20 |
| Secondary empty voltage (V) | 10.4 |
| Secondary voltage regulating series | 1 |
| Throat depth (mm) | 465 |
| Cylinder stroke (mm) | 200 |
| Electrode Dimensions (mm) | ￠460 |
| Welding speed m/min | 6(high-strength steel) |
| Max. working pressure (kgf) | 1571 |
| Compressed air pressure (MPa) | 0.6~0.7 |
| Compressed air consumption (0.5MPa air pressure, stroke: 60mm) (L/ welding spot) | 14.43*2 |
| Cooling water consumption (L/MIN) | 24 |
| Primary cable specification (MM2) | 3*70+2*16 |
| Max. Short Circuit Current of transformer (KA) | 85 |
Feature

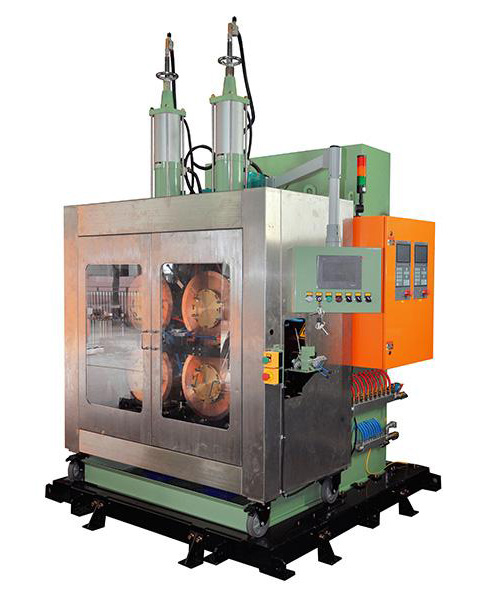

The Heron car bumper resistance seam welding machine comes with a double headed seam welding system that is powered by a 660KVA power supply unit.
Introduction

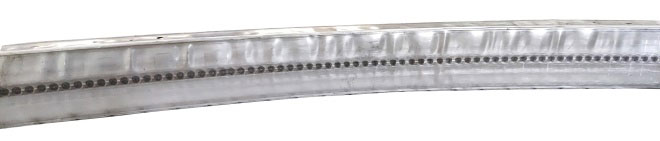

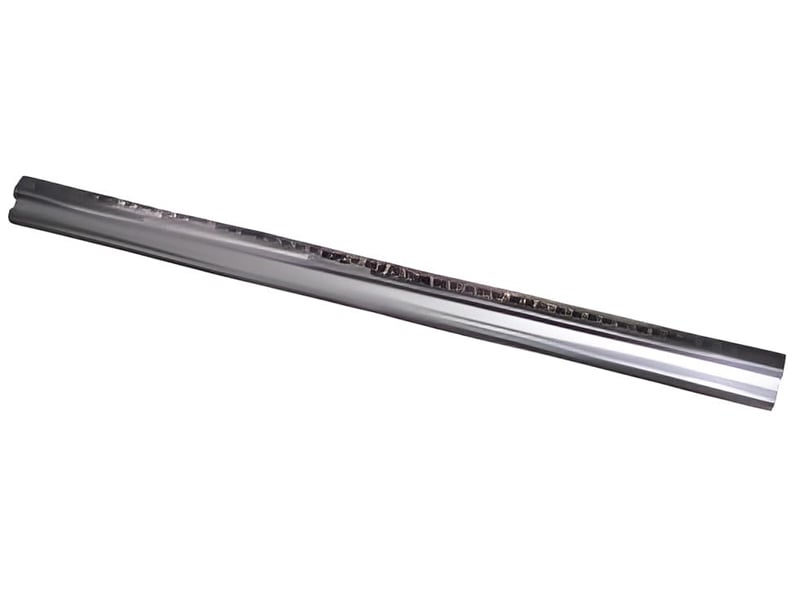

Because most car bumpers are framed with high strength steel, we utilize a double wheel resistance seam welding technology. This allows for high speed welding of workpieces that can complete both sides in one process.

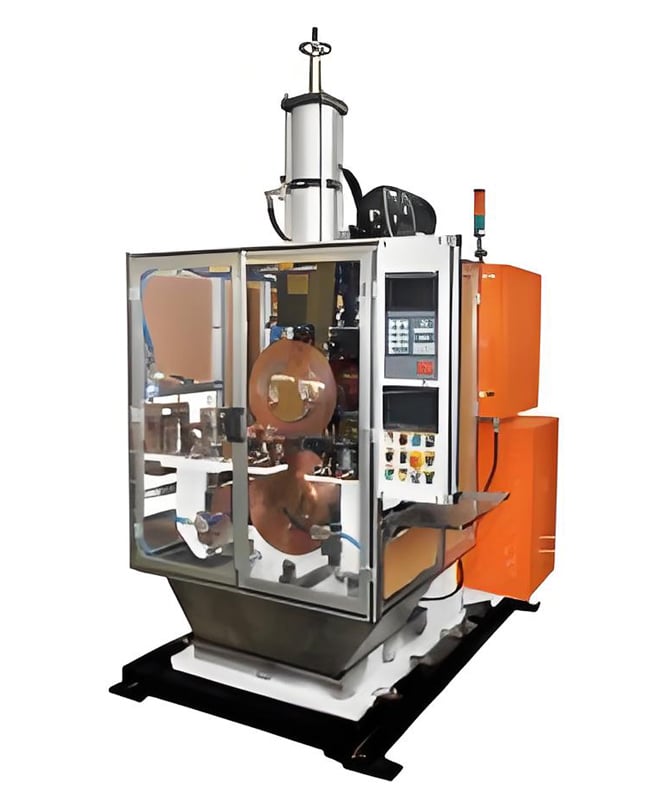

| Model | |
| Rated Capacity (KVA) | 880 |
| Power Supply (V/Φ/Hz) | 380/3/50 |
| Primary Current (A) | 700 |
| Maximum Short-Circuit Current (KA) | 110 |
| Maximum Welding Pressure (KN) | 30 |
| Overall Dimensions (L×W×H) (mm) | 2100x1750x3200 |
