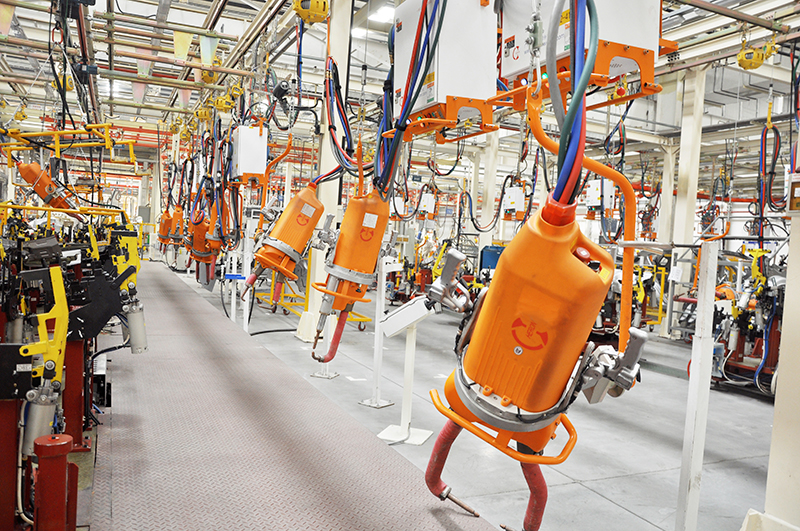

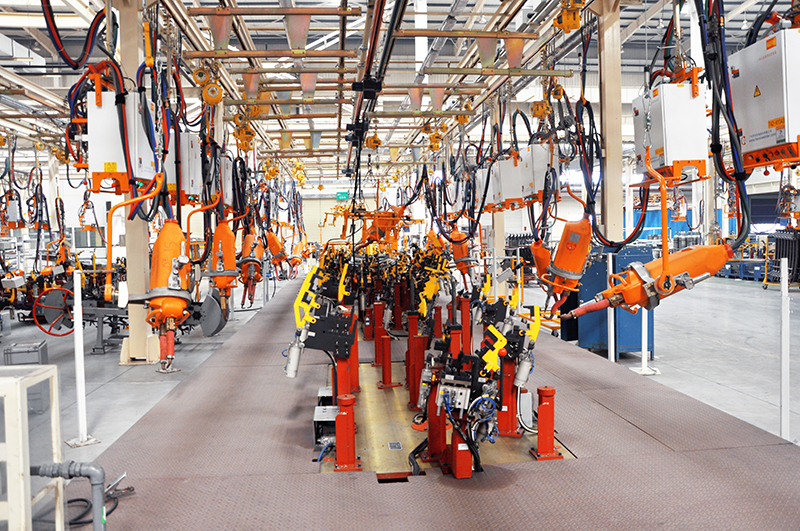

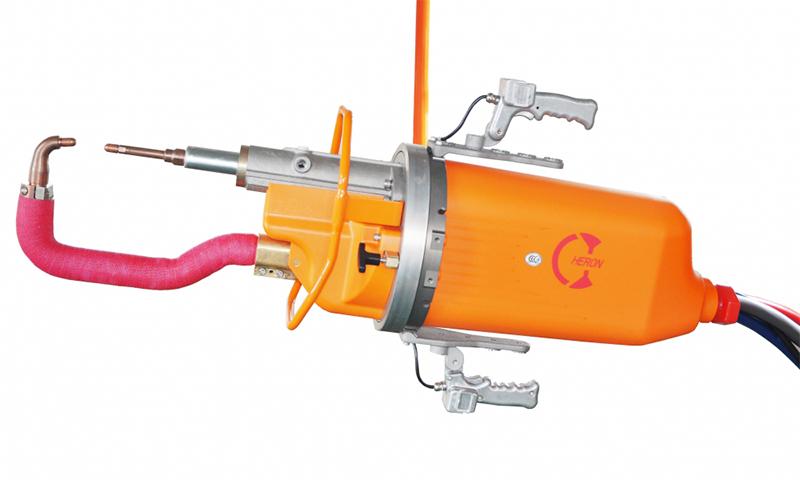

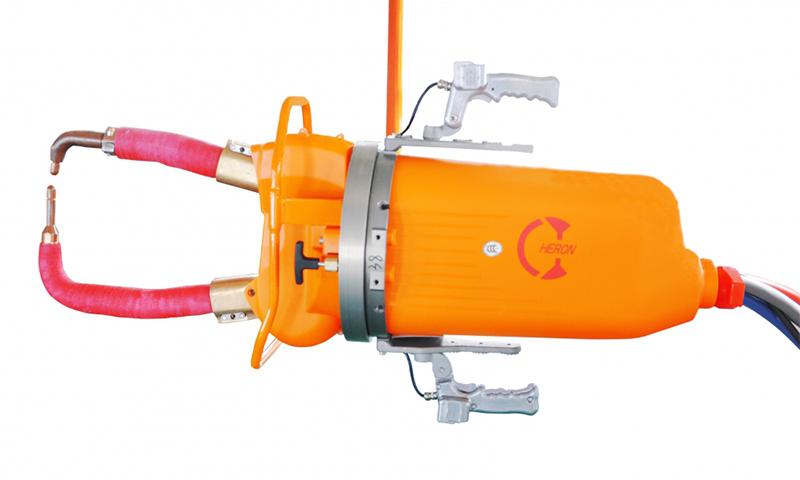

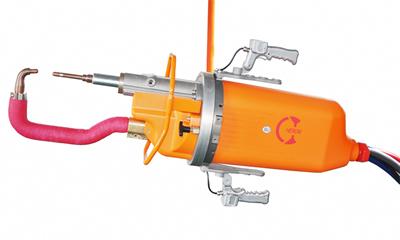

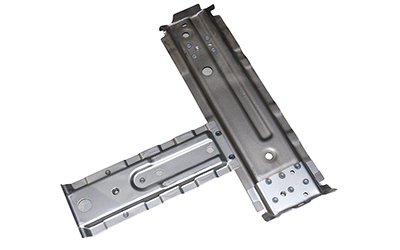

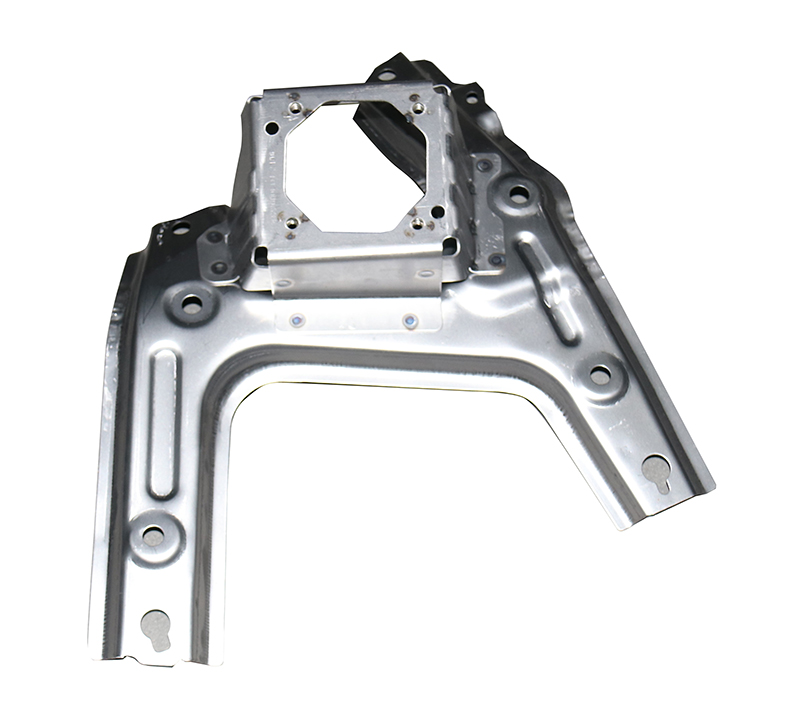

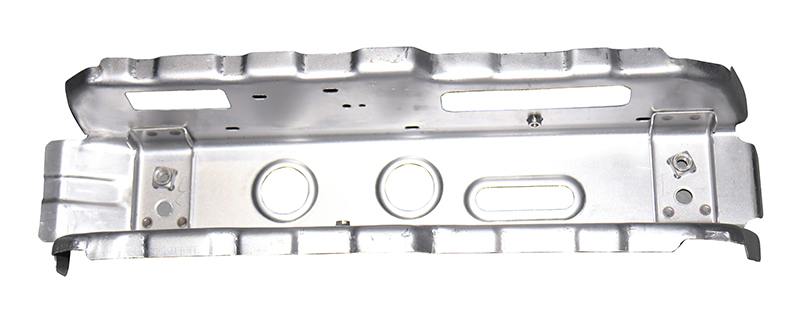

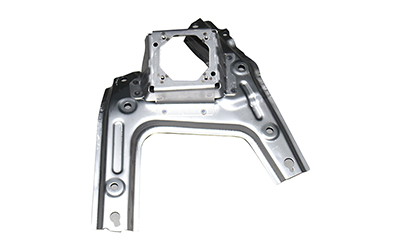

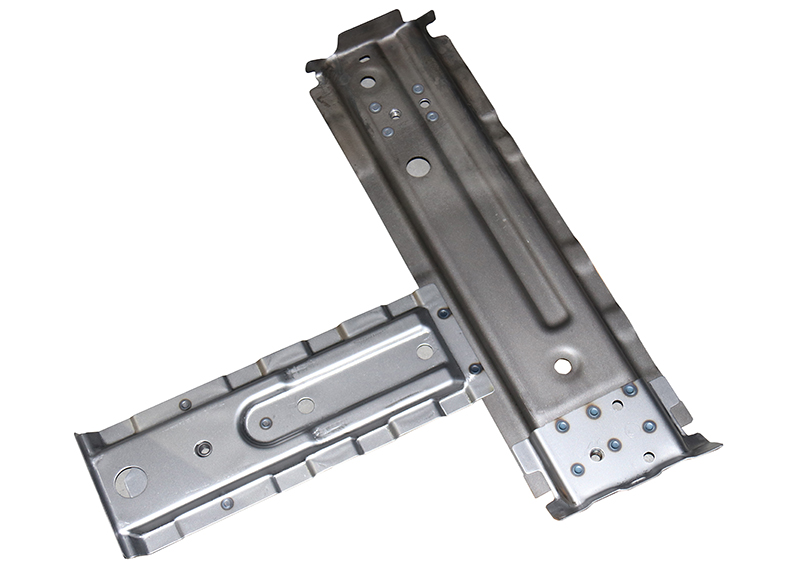

The H series manual spot welding gun is primarily used for spot welding processes on production lines for auto bodies and cabinets.
Features
The H series manual spot welding gun is designed to meet the demands of a higher welding pressure. We offer X and C type welding guns, with both using the same gun model, and able to replace the other with very little down time. As an example, if the X type welding gun needs to be replaced with the C type welding gun, the C type welding gun can complete the work process in less than 20 minutes.

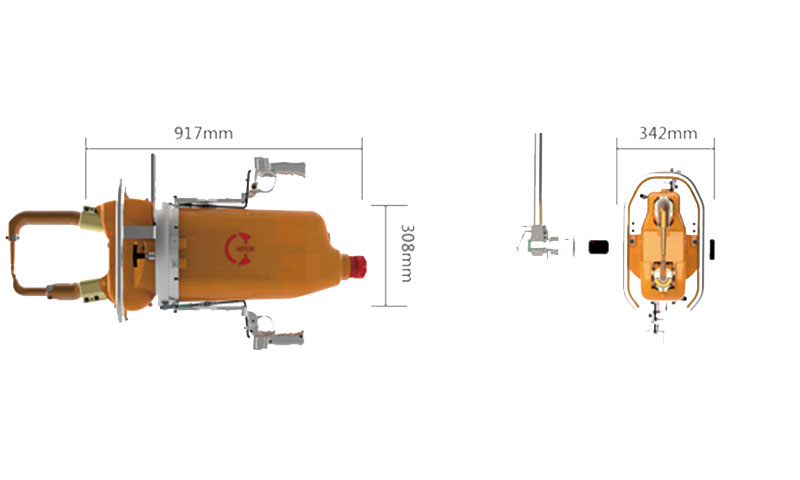

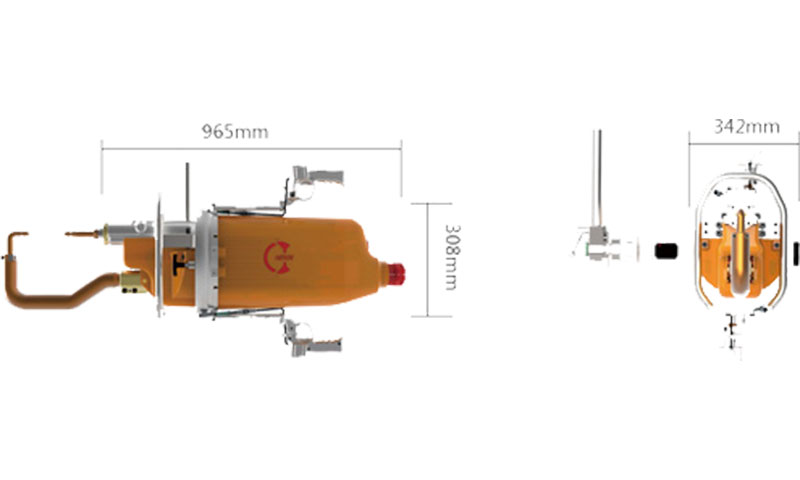

| C150 | Item | Transformer | Cylinder diameter (mm) | Stroke(mm) Assist/Weld/Back up | Cylinder number | Secondary voltage (V) | Welding force (Kg) 0.5MPa | Secondary short circuit current (KA) | Total Weight (Kg) | L (mm) | H (mm) | G (mm) | A+ (°) |
| 1 | 55(KVA MFDC) | Φ80 | 45/20/20 90/20/20 130/20/20 | 2 | 8.9 | 400 | 15 | 75-95 | Standard throat depth 250 300 350 400 500 | Standard arm gap 110 150 200 250 300 400 | Bending height 40 50 60 80 100 | Angle 105° 110° | |
| 2 | 110(KVA MFDC) | 2 | 10.4 | 400 | 24 | 85-105 | |||||||
| 3 | 40(KVA AC) | Φ80 | 45/20/20 90/20/20 130/20/20 | 2 | 5 | 400 | 14 | 90-110 | |||||
| 4 | 65(KVA AC) | 2 | 9.7 | 400 | 18 | 90-110 |
| X160 | Item | Transformer | Cylinder diameter (mm) | Dynamic arm length (mm) | Stroke(mm) Assist/Weld/Back up | Cylinder number | Secondary voltage (V) | Welding force (Kg) 0.5MPa | Secondary short circuit current (KA) | Total Weight (Kg) | L (mm) | H (mm) | G (mm) | A+ (°) | B+ (°) |
| 1 | 55(KVA MFDC) | Φ80 | 152 | 35/10/10 | 3-5 | 8.9 | 200-500 | 15 | 75-95 | Standard throat 260 360 420 500 | Standard arm gap 110 165 200 | Bending height ≥40 | Angle 105° 110° | Angle 105° 110° | |
| 2 | 110(KVA MFDC) | 4-6 | 10.4 | 200-500 | 24 | 85-105 | |||||||||
| 3 | 40(KVA AC) | Φ80 | 152 | 35/10/10 | 4-6 | 5 | 200-500 | 14 | 90-110 | ||||||
| 4 | 65(KVA AC) | 4-6 | 9.7 | 200-500 | 18 | 90-110 | |||||||||
| X230 | 1 | 55(KVA MFDC) | Φ80 | 178 | 35/10/10 | 3-5 | 8.9 | 200-500 | 15 | 75-95 | Standard throat 420 500 600 700 800 | Standard arm gap 260 300 350 400 | Bending height ≥40 | Angle 105° 110° | Angle 105° 110° |
| 2 | 110(KVA MFDC) | 4-6 | 10.4 | 200-500 | 24 | 85-105 | |||||||||
| 3 | 40(KVA AC) | Φ80 | 178 | 35/10/10 | 4-6 | 5 | 200-500 | 14 | 90-110 | ||||||
| 4 | 65(KVA AC) | 4-6 | 9.7 | 200-500 | 18 | 90-110 |

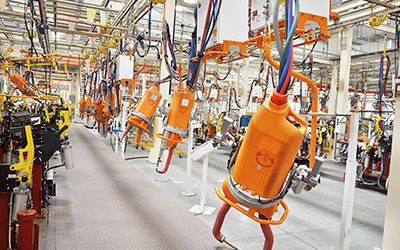

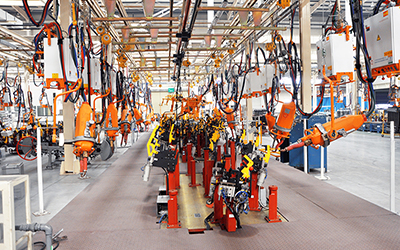

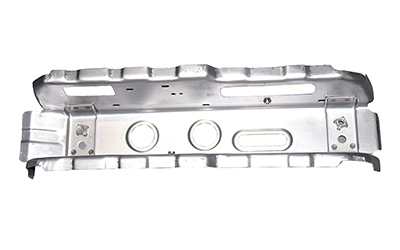

Heron is engaged in making resistance welding system, is an experienced manual spot welding gun manufacturer and welding solution provider. Since 1997 we have been offering wide range of stationary resistance spot welders, DC resistance seam welders, resistance projection welding machines and robotic welding system for global customers.
