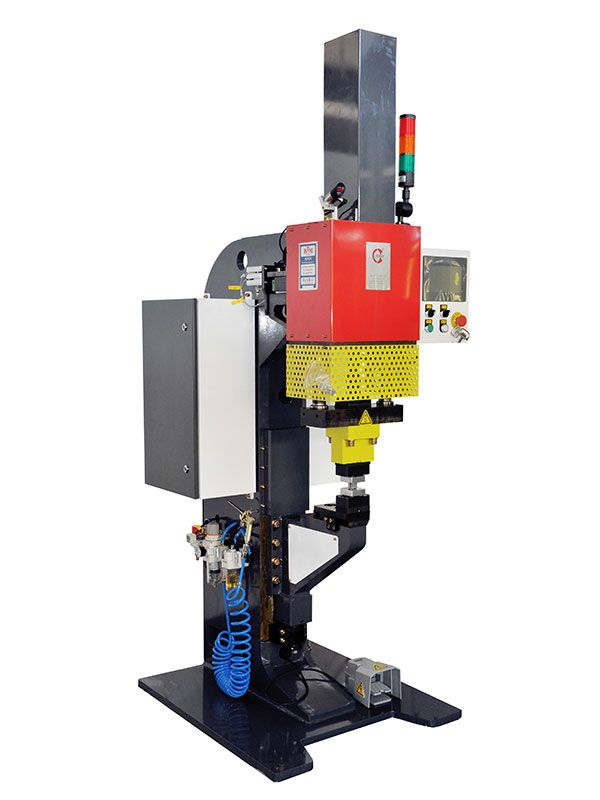

Our stationary BTM clinching machine features floor-standing structure with good body rigidity, and is designed with a pneumatic-hydraulic power cylinder in the pressurization system. This clinching equipment is available with 2 models, which has a capacity of 8T and 15T respectively.
With a special Punch and Die, the two types of plastic deformed metals are extruded into the die by pressure to achieve a permanent bond.

8T Clinching Machine, ZMY-008-1T1A00

• Max. force output: of 8T
• Power supply (V/Φ/Hz): 220/1/50
• Max. air pressure: 0.6Mpa
• Press force: 74kN
• Total stroke: 100mm
• Power stroke: 12mm
• Dimensions (LxWxH): 800x960x2400mm

15T Clinching Machine, ZMY-015-001-18007

• Max. force output: of 15T
• Power supply (V/Φ/HZ): 380/3/50(380V, three phase, 50Hz)
• Max air pressure: 0.6Mpa
• Press force: 130KN
• Total Stroke: 100mm
• Power Stroke: 12mm
• Dimensions (LxWxH): 820x1060x2361mm
