Model		DB-165	DB-220	DB-440	DB-660
Rated Capacity	KVA	220	250	440	660
External Power Supply	V/Φ/Hz	380V/3Φ/50Hz
Maximum Primary Current	A	120	150	350	500
Maximum Short-Circuit Current	KA	30	40	59.9	85
Rated Duty Cycle	%	20	20	20	20
Secondary Voltage	V	10.4	10.4	10.4	10.4
Maximum Operating Pressure	N	7546	15395.8	15395.8	24049
Overall Dimensions (L×W×H)	mm	168415452427	168415452427	168415452427	168415452427

Model		DR-20000-21034
Rated Capacity	KJ	20
Power Supply	V/Φ/Hz	380/3/50
Primary Current	A	78
Maximum Short-Circuit Current	KA	115
Maximum Welding Pressure	KN	16
Overall Dimensions (L×W×H)	mm	1497x1500x2150

Model		DR-15000-21011
Rated Capacity	KJ	15
Power Supply	V/Φ/Hz	380/3/50
Primary Current	A	60
Maximum Short-Circuit Current	KA	108
Maximum Welding Pressure	KN	10
Overall Dimensions (L×W×H)	mm	2770x3002x2539

Model		DBP-600-22002
Rated Capacity	KVA	600
Power Supply	V/Φ/Hz	380/3/50
Maximum Primary Current	A	522
Maximum Short-Circuit Current	KA	70
Maximum Welding Pressure	KN	20
Overall Dimensions (L×W×H)	mm	914x1245x2985

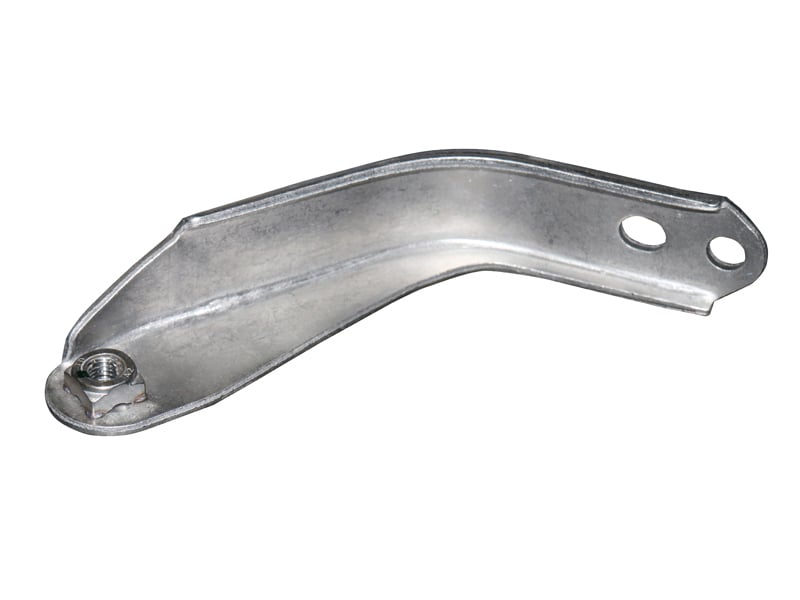

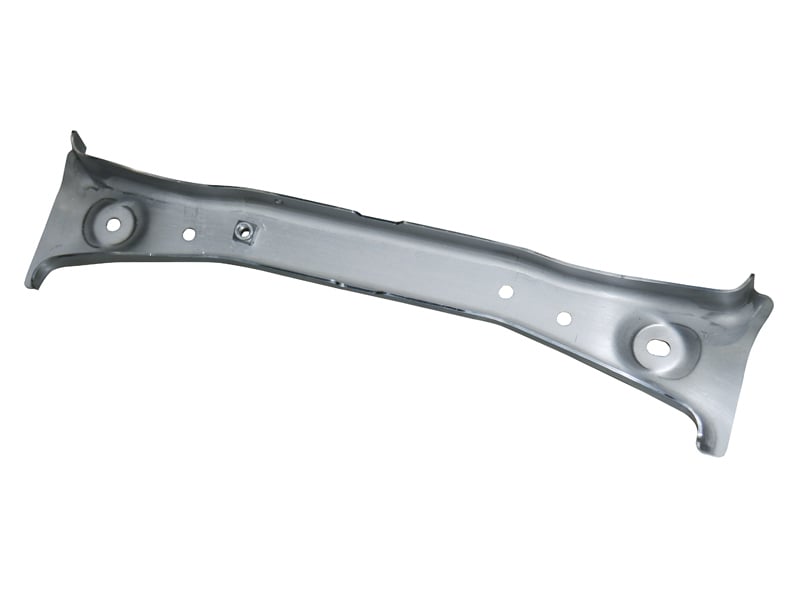

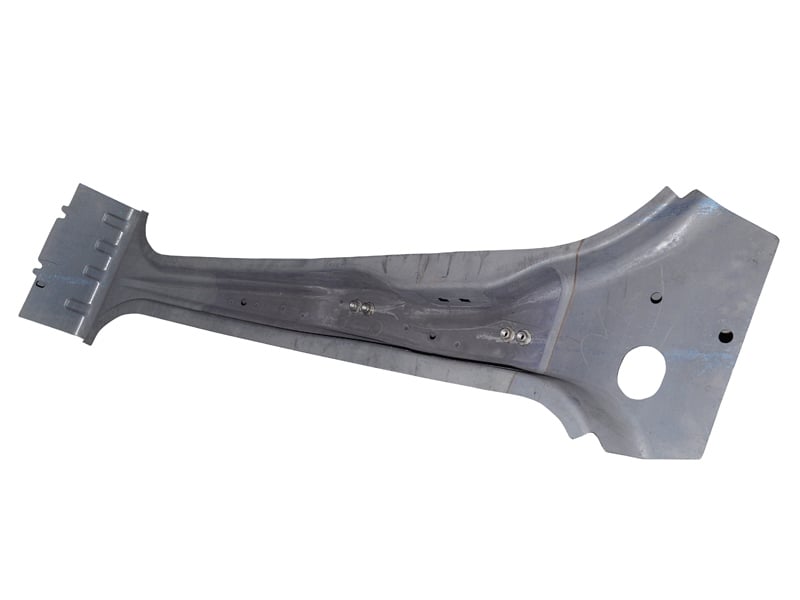

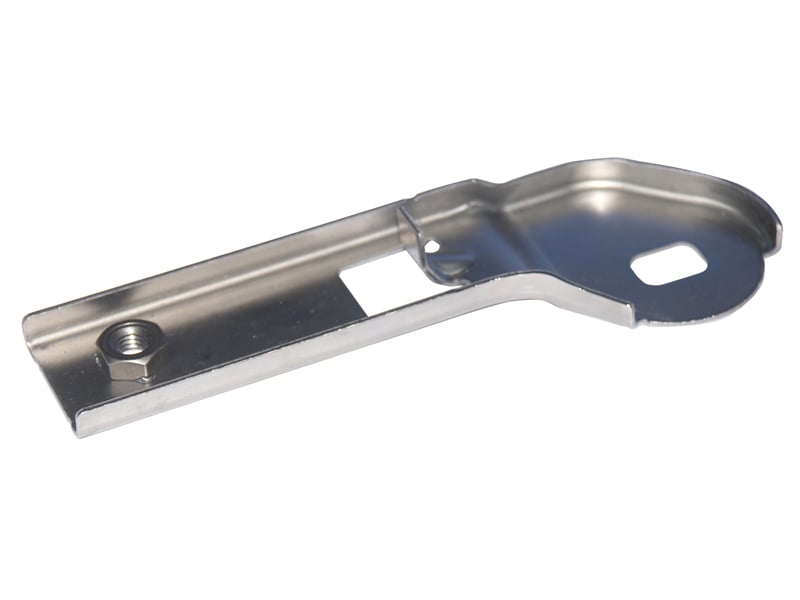

Auto Parts Welding Solution
