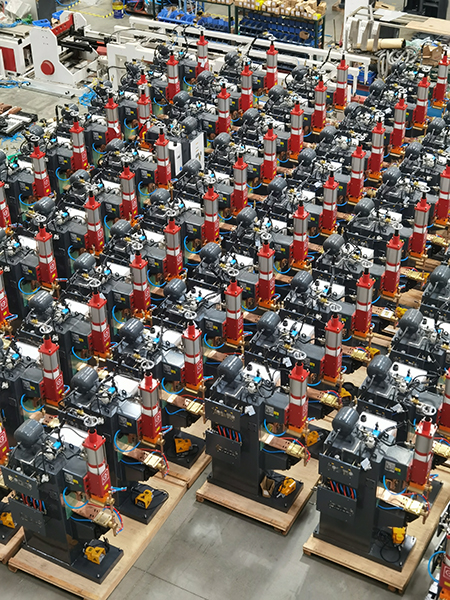

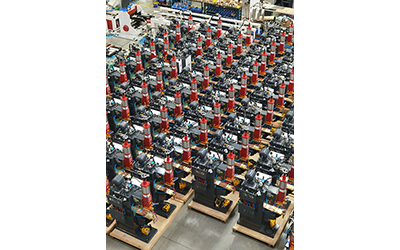

55KVA-440KVA Medium Frequency Electric Welding Machine (Stationary Spot Welder, Projection Welder)

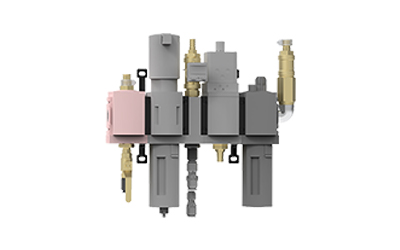

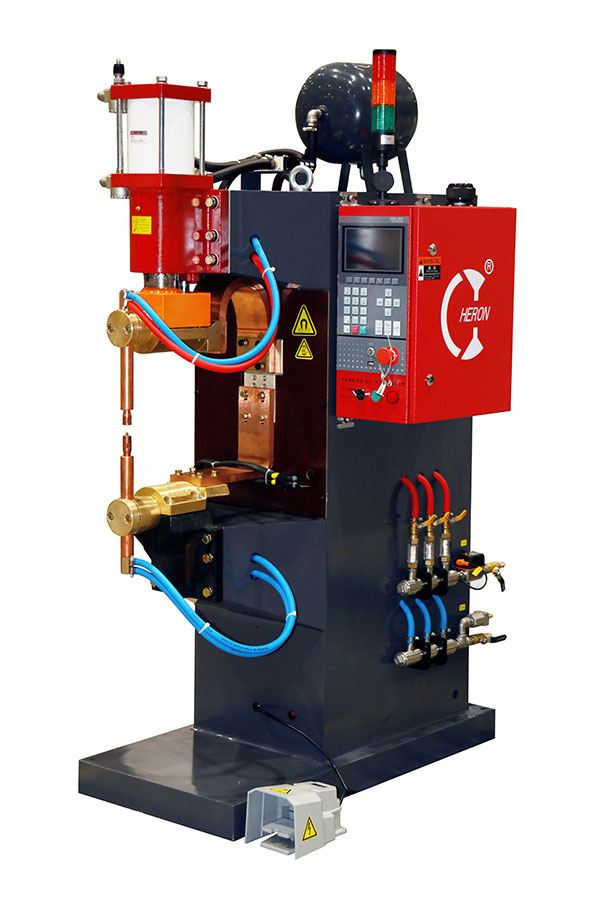

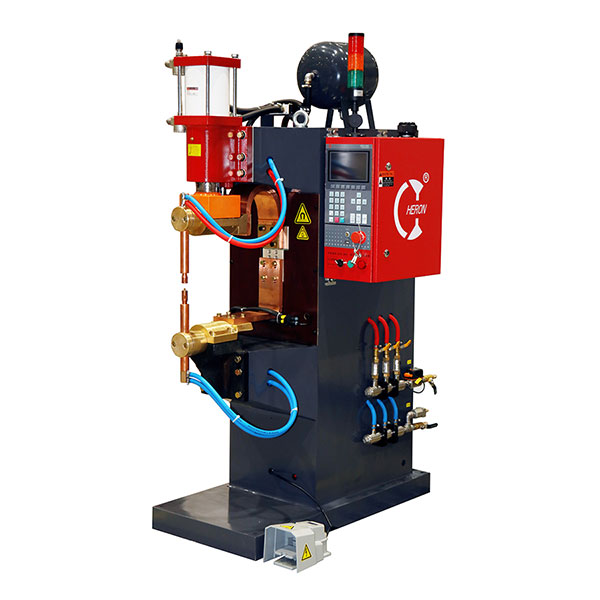

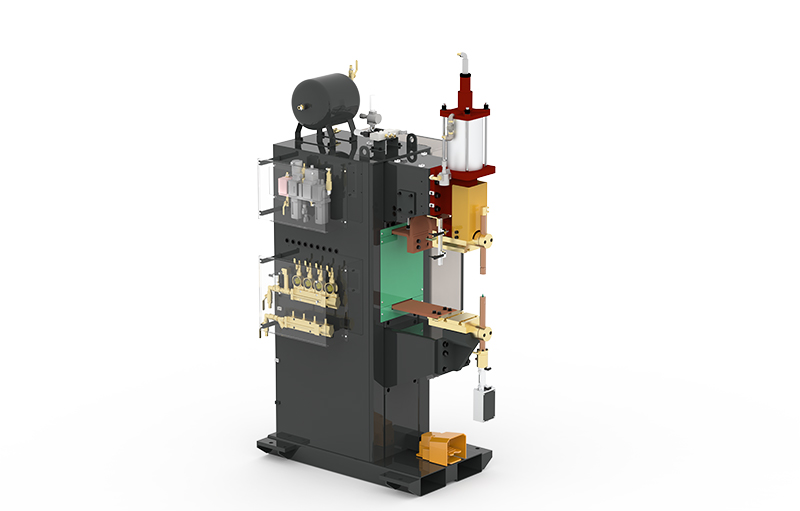

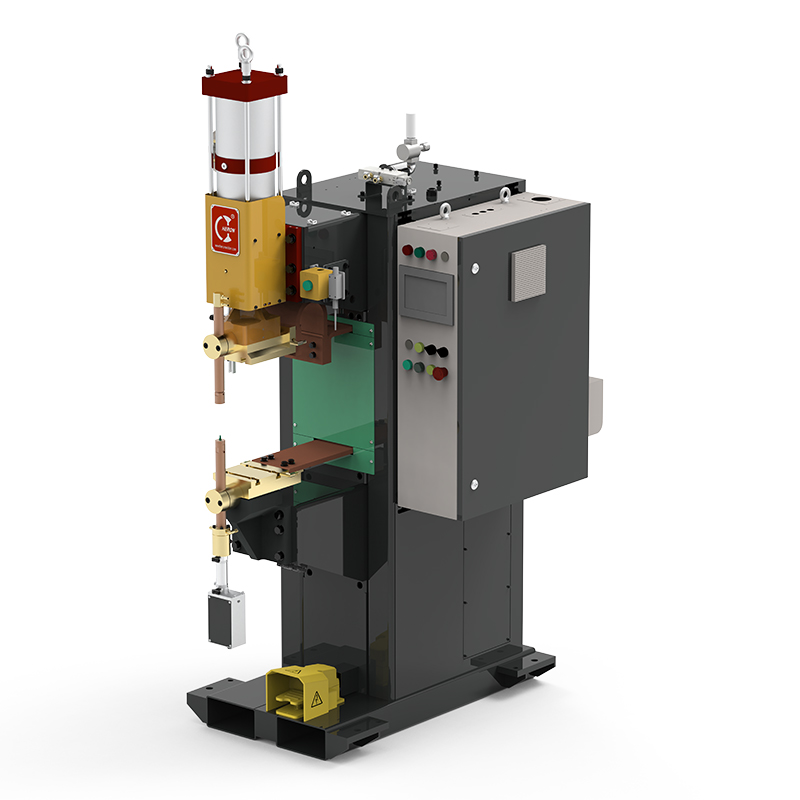

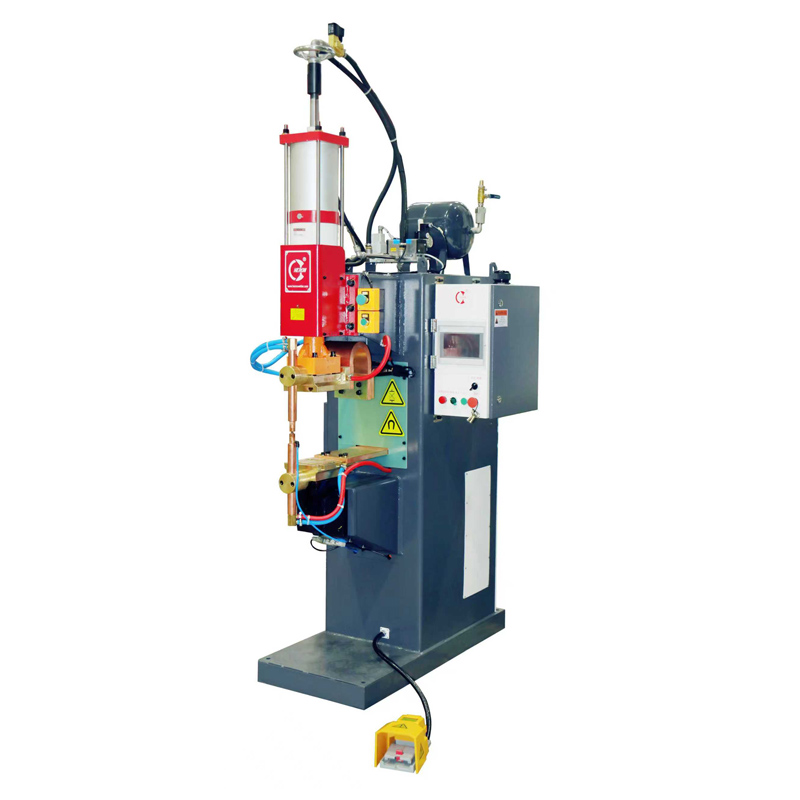

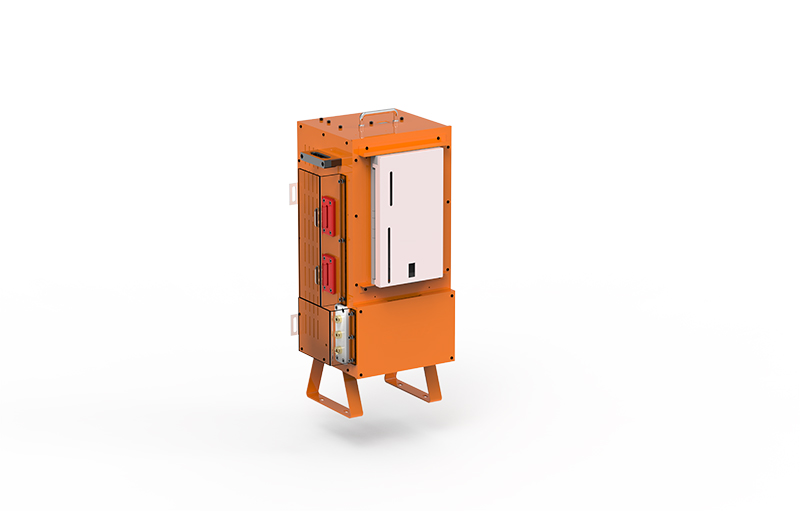

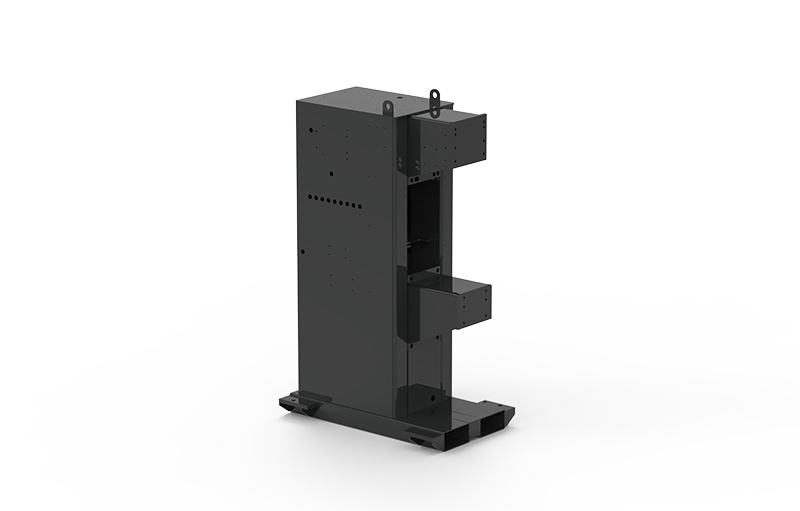

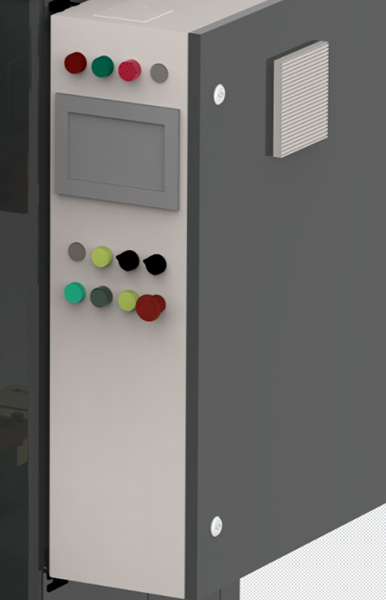

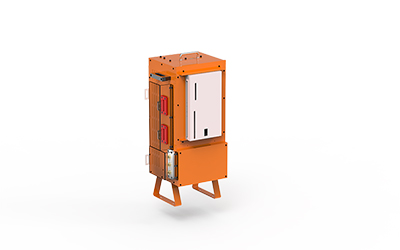

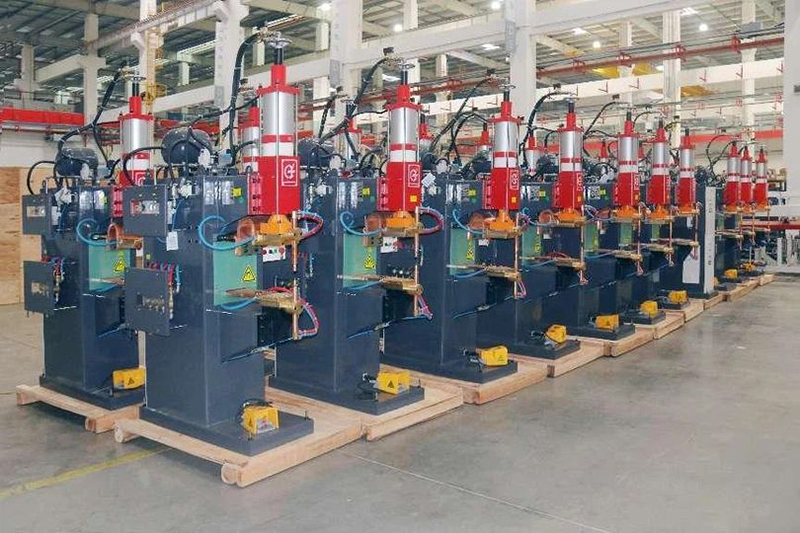

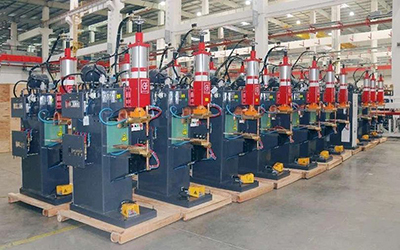

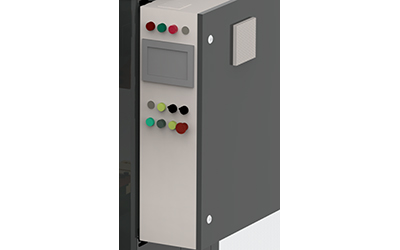

Low configuration medium frequency resistance welding machine MFE series

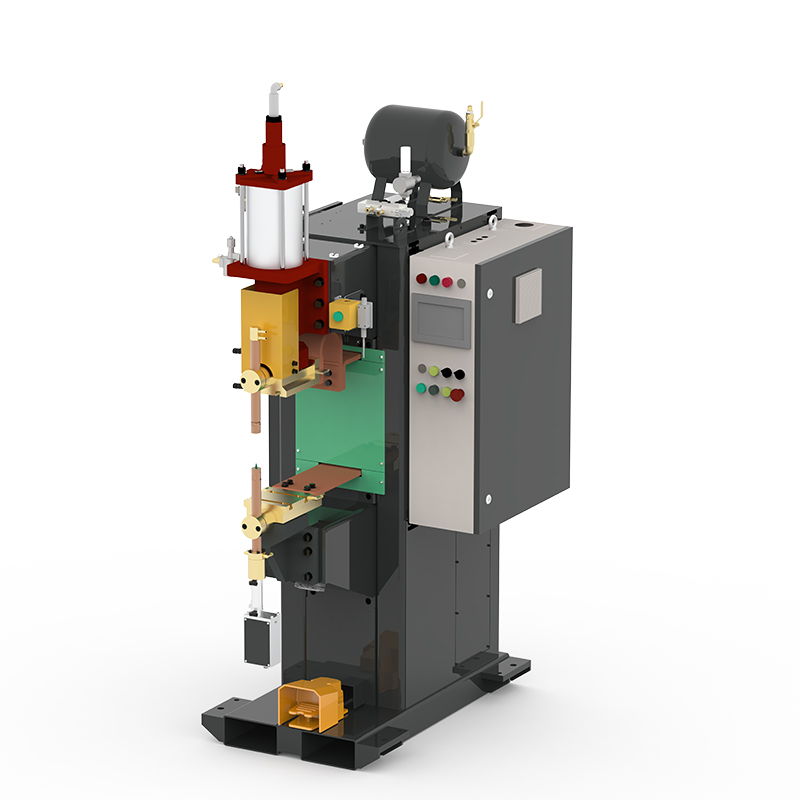

  • Medium frequency spot welder and projection welder 55KVA/110KVA

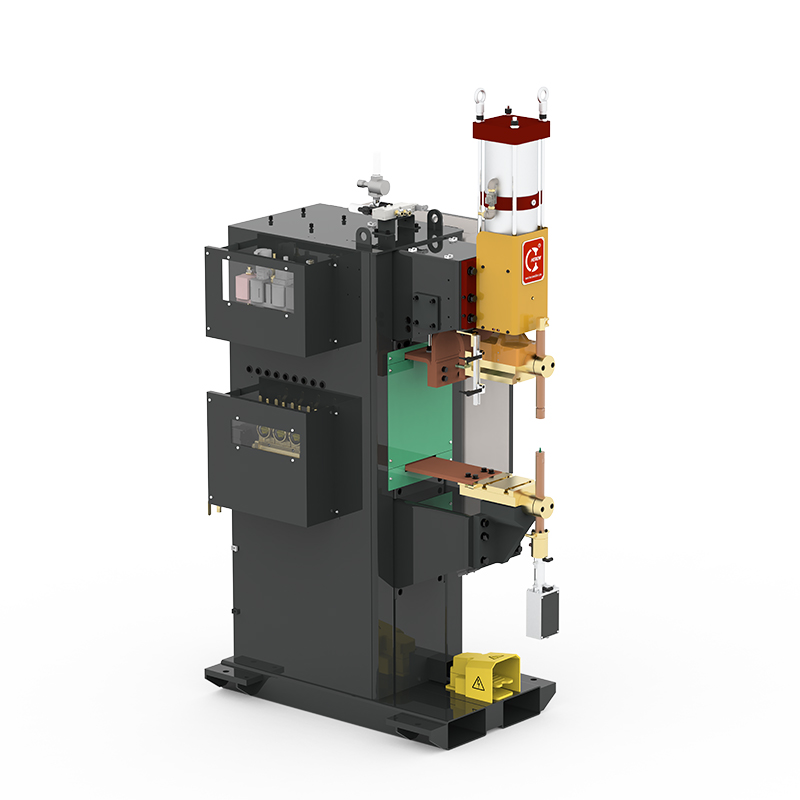

  • Medium frequency spot welder and projection welder 165KVA / 220KVA / 250KVA / 440KVA

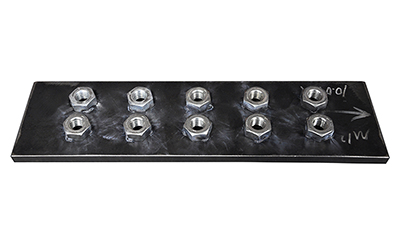

Application

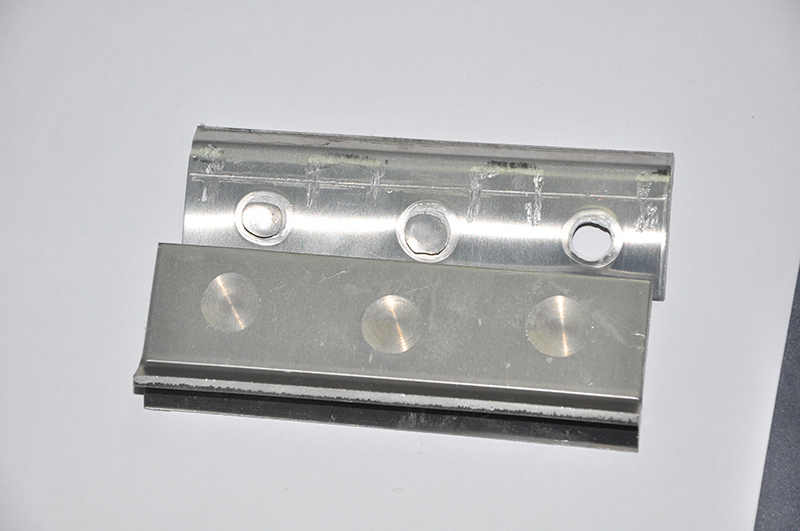

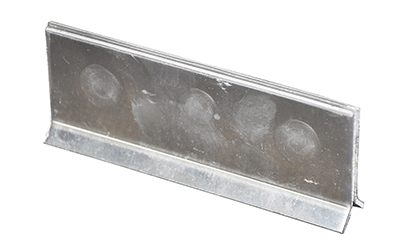

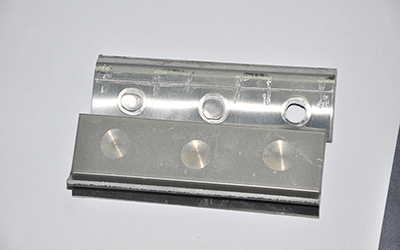

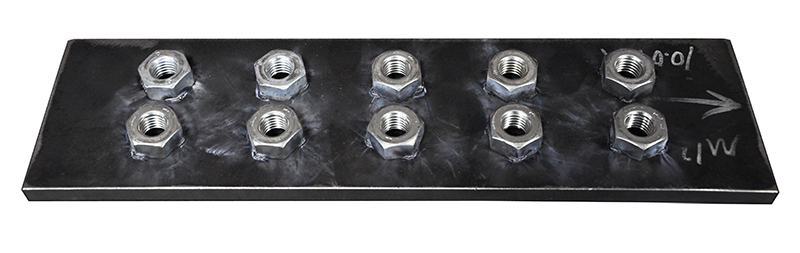

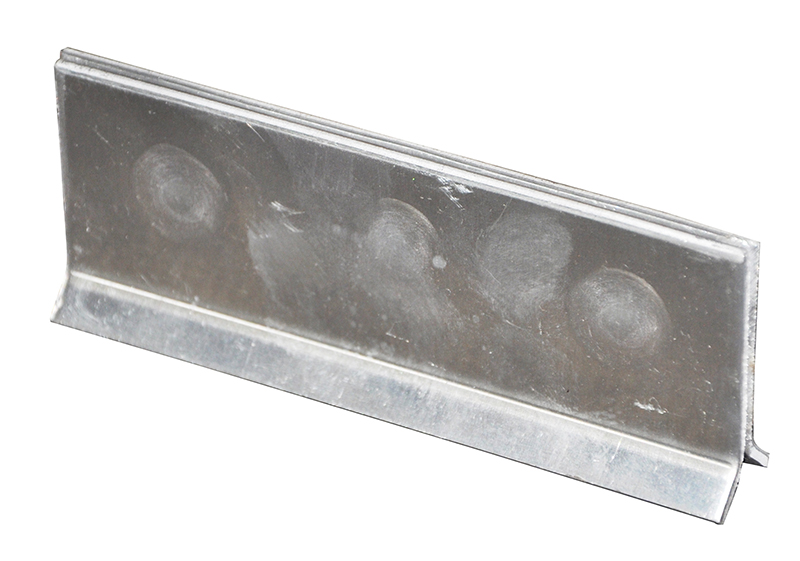

Low configuration medium frequency resistance welding machines are primarily used for spot welding and projection welding processes, such as the welding of carbon steel, stainless steel, aluminum, copper and other alloys.

Feature
1. The resistance welding machine power ranges between 55KVA to 440KVA.
2. The maximum short cut current of our welding machine ranges between 18KA to 60KA.
3. At an atmospheric pressure of 6bar, the welding pressure of our welder ranges between 2510N to 15000N.
4. A circular shaft guiderail pressure welding head is standard for this type of welding equipment. The effective throat depth is 950mm.

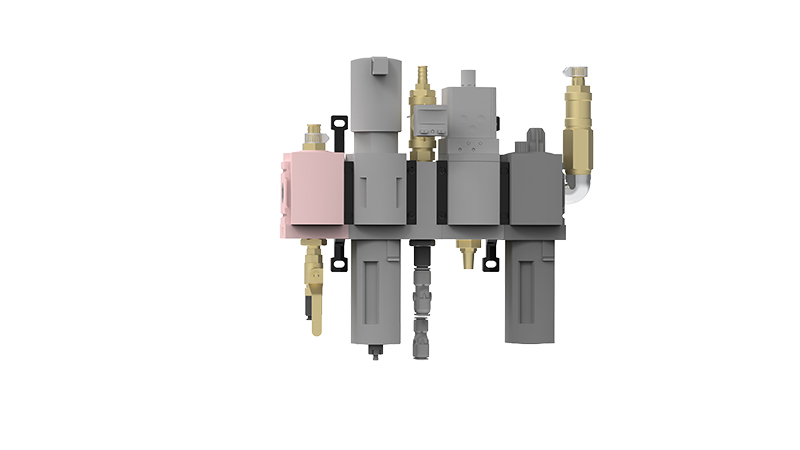

5. A one-stroke cylinder is a standard configuration for our welding machine, however, as a double stroke cylinder and servo electric cylinder are both compatible, customers can choose from those as well.

Technical parameter
Model # DB-55-**0** DB-110-**0** DB-165-**0** DB-220-**0** DB-250-**0** DB-440-**0**
Rated Capacity KVA 55 110 165 220 250 440
Power Supply V/Φ/Hz 380V/3Φ/50Hz
Max Primary Current A 37 75 112 149 169 298
Primary Cable MM2 5*16 5*16 5*16 5*16 5*16 3*50+16+25
Max. Short Cut Current KA 18 24 30 40 45 59.9
Rated Duty Cycle % 20 20 20 20 20 20
Secondary Empty Voltage V 8.9 10.4 13 10.4 12.5 10.4
Welding Cylinder Size Φ*L Φ80*60/Φ32*50 Φ100*60 Φ160*100 Φ160*100 Φ200*100 Φ200*150
Max Working Pressure @ 0.5MPa N 2510 3920 10000 10000 15000 15000
Compressed Air Pressure MPa 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7
Cooling Water Consumption L/MIN 6 8 12 12 15 20
Compressed Air Consumption L/ welding spot 1.43 2.28 5.84 5.84 9.24 9.24
Throat Depth MM 371 424 444 444 444 310
Arm Gap MM 329 410 425 425 425 398
Electrode Size MM Φ25 Φ30 Φ30 Φ30 Φ30 *
Dimension H(MM) 1541 1758 1800 1800 1800 2432
L(MM) 901 1009 1159 1159 1159 1375
W(MM) 500 500 500 500 500 650

Heron is engaged in making resistance welding system, is an experienced 55KVA-440KVA MFDC resistance welding machine manufacturer and welding solution provider. Since 1997 we have been offering wide range of medium frequency stationary resistance spot welders, resistance seam welders, MFDC resistance projection welding machines and robotic welding system for global customers.
