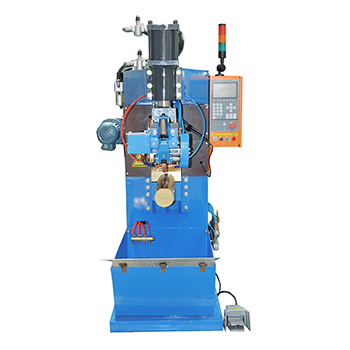

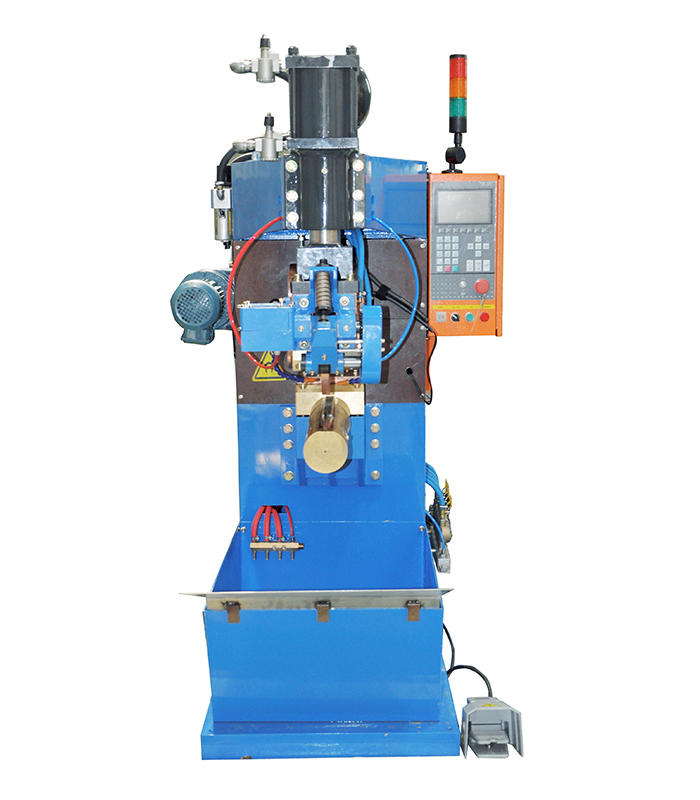

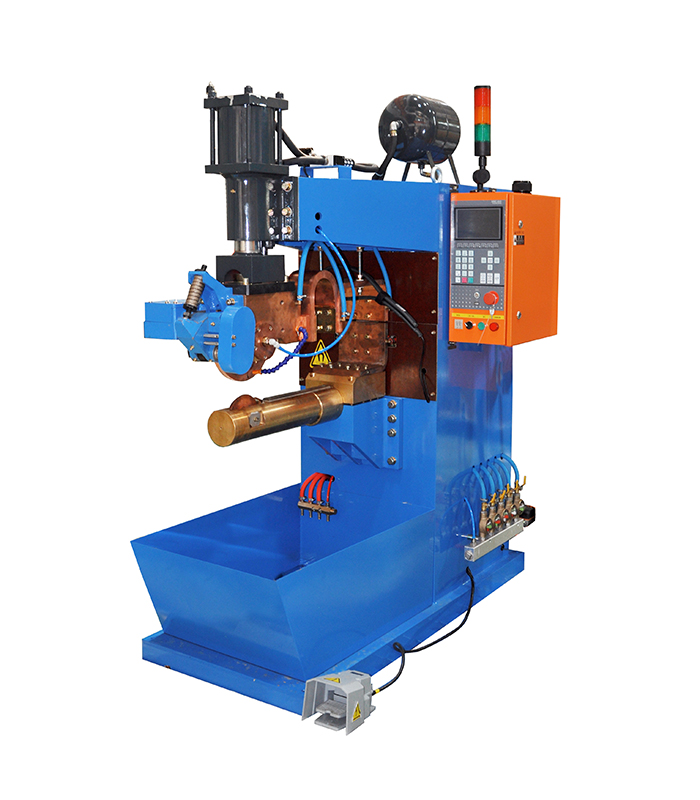

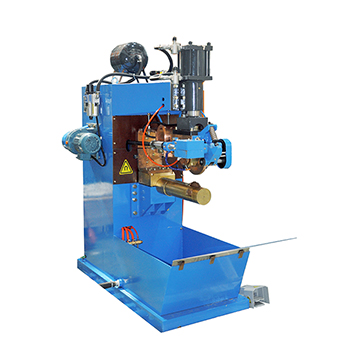

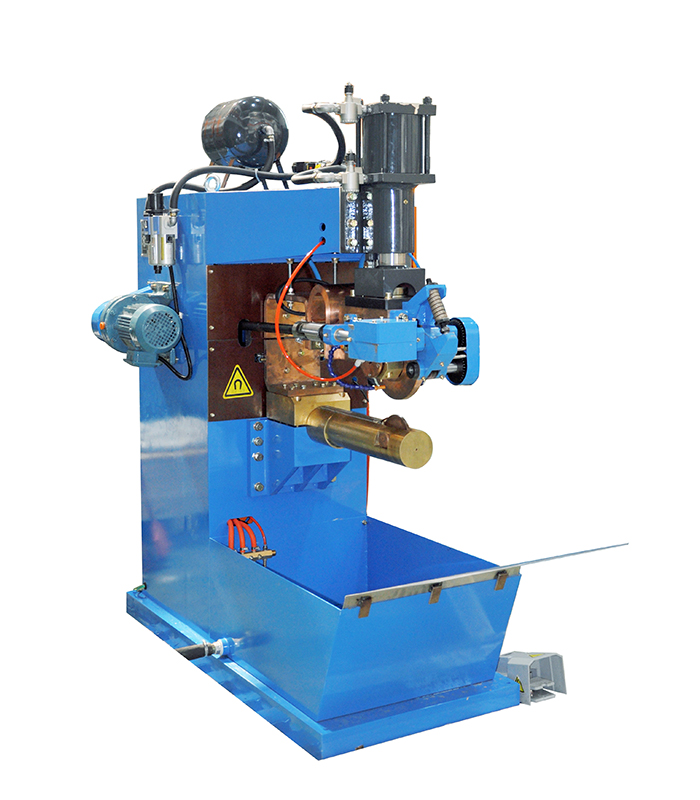

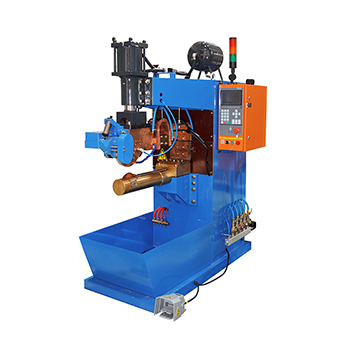

200KVA MFDC Longitudinal Seam Welder

The 200 kVA MFDC longitudinal seam welder is designed for cylindrical workpieces and longitudinal seam welding applications. Its rigid structure, stable clamping system, and MFDC inverter technology support consistent seam quality in continuous production.

Applications

This longitudinal seam welder is suitable for seam welding applications of a wide range of materials, including:

  • Non-ferrous metals
  • High-temperature alloys
  • Low-carbon steel
  • Stainless steel
  • High-strength steel
  • Galvanized steel
  • Aluminum alloys

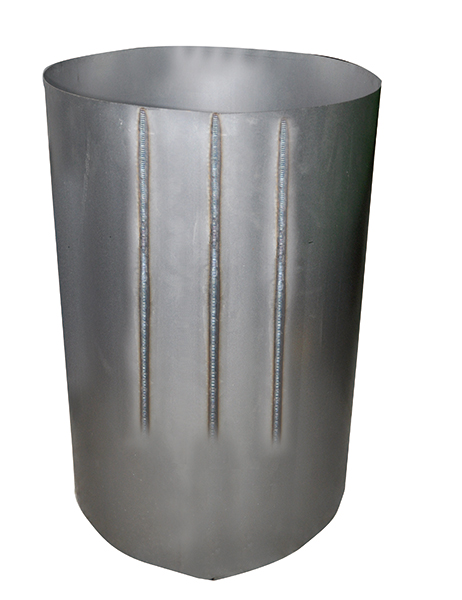

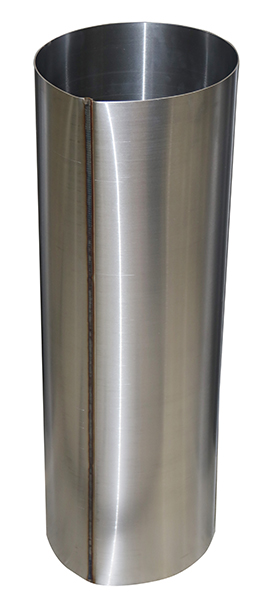

Welded Samples

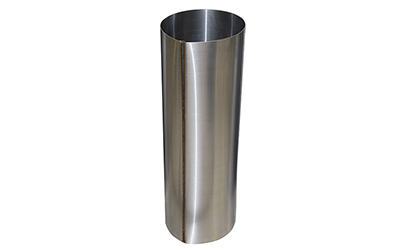

  • Welded Samples

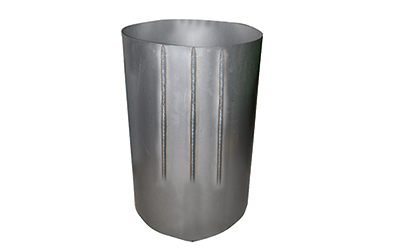

  • Welded Samples
Specifications
Model FB-200-L**
Rated Capacity kVA 200
Power Supply V/Ph/Hz 380/3/50
Max. Primary Current A 136
Primary Cable mm2 50
Max. Short-Circuit Current kA 35.3
Rated Duty Cycle % 10
Secondary No-Load Voltage V 10
Welding Cylinder Size Ø×Stroke Ø160×80
Max. Electrode Force N 10000
Compressed Air Pressure MPa 0.6～0.7
Cooling Water Flow Rate L/min 33
Compressed Air Consumption L/cycle 5.84
Throat Depth mm 1147
Arm Gap mm 115
Electrode Size mm Ø250×20
Dimensions (H×L×W) mm 2368×2274×1263

Heron is engaged in making resistance welding system, is an experienced metal electric resistance seam welding machine manufacturer and welding solution provider. Since 1997 we have been offering wide range of MFDC resistance spot welders, MFDC resistance seam welders, DC resistance projection welding machines and robotic welding system for global customers.
